CoroMill® MR80
Cost-efficient face and profile milling
Reliable roughing
Designed for challenging roughing operations in a wide range of face and profile milling operations in steel and stainless steel, CoroMill® MR80 offers reliable and cost-efficient machining thanks to the security of a round insert cutting edge and our patented shim design.
An economical solution
Thanks to the double-sided insert design and a total of 12 indexing possibilities, CoroMill® MR80 is an economical solution in primarily face milling operations, as well as in limited shoulder and pocket milling applications.
Problem-solver
Thanks to its light cutting geometry, less load is exerted on the spindle, allowing CoroMill® MR80 to work as a problem solver in long overhang applications.
Application
Application areas
- Rough milling and semi-roughing operations requiring the security of a round insert cutting edge
- Face and shoulder milling with limited ramping pocket milling applications
- Interrupted machining and applications prone to notch wear
Main components

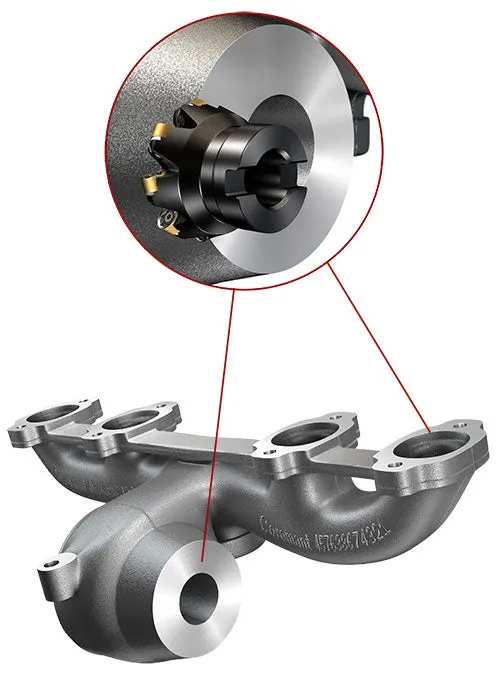

- Automotive: face milling of front axle, stub axle (steering knuckle), differential housing, turbo charger and exhaust manifold
- Oil and gas: face and shoulder milling of valve bodies
- Die and mould: face and pocket milling of mould bases
- General engineering: batch production in ISO P, M and K
ISO application area
Product range

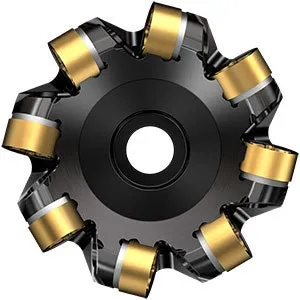

Cutter body
- Diameter range: 32–100 mm
- Diameter range, inch: 2–4 inch
- Arbor and cylindrical cutter bodies
- Shim protection
- Internal coolant
- High zn for higher productivity
- Robust tip seat design
Insert
- Insert IC size: 12 mm (0.472 inch)
- Insert thickness: 6 mm (0.236 inch)
- Maximum depth of cut: 3 mm (0.118 inch)
- Number of cutting edges: 12
Start by selecting one or more products
Start by selecting one or more products
Highlights

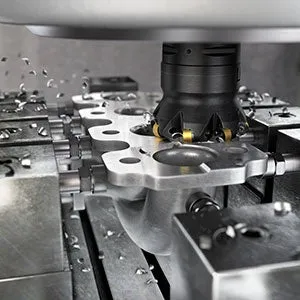

Demo film: CoroMill® MR80 in action
CoroMill® MR80 for roughing to semi-roughing operations in a wide range of face and shoulder milling operations. See it in action here.
Metal cutting knowledge: Milling
This section covers application knowledge and tips for various milling operations. Brush up on your face and shoulder milling knowledge here.
