CoroMill® 180
Indexable power skiving cutter for gear and spline production with high output

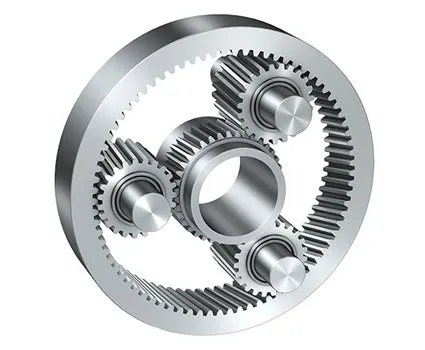

Customer case: Planetary gear
| Component: | Planetary ring gear |
| Workpiece material: | Low-alloy steel |
| Gear data: | Module 4/20° (DP 6.35) Face width 25 mm (1.0 inch)/35 teeth |
| Tool solution: | CoroMill® 180 indexable two-edge power skiving cutter |
| vcCutting speed, : | 215 m/min (705 ft/min) |
| Feed: | 0.5 mm/rev (0.02 inch/rev) |
| Cycle time: | 1 minute |
Result: The component quality was improved to DIN class 7 and the cycle time was reduced from ten minutes with the previous solution to one minute with power skiving.
90%
Cycle time reduction
