CoroCut® QI
Optimized for internal grooving and face grooving on small diameters

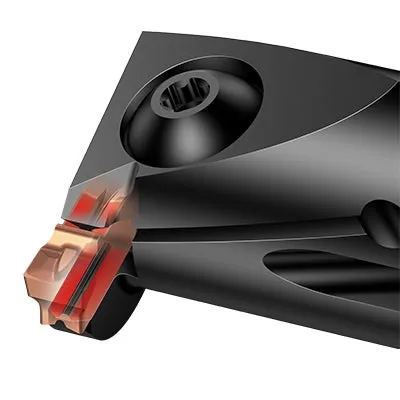

Rail insert seat
Featuring a rail insert seat, the tool ensures a stable and precise insert position with minimized insert movement. The rail insert seat ensures high process security and reliable machining of internal grooves and face grooves.

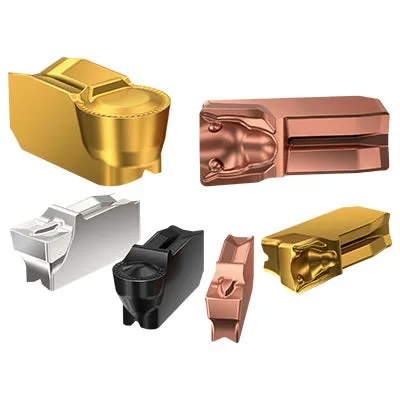

Optimized geometries
Achieve high surface-quality grooves thanks to optimized geometries for each application. All inserts fit both internal grooving and face grooving tool holders making it easy to choose the right tool.

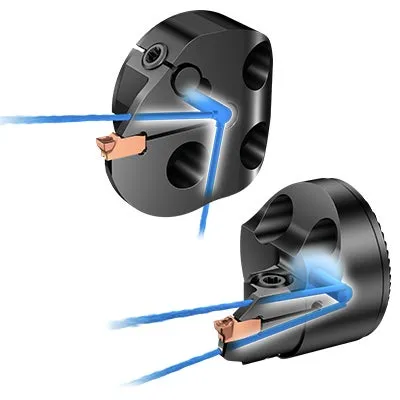

Internal coolant
Coolant channels delivering coolant to the cutting zone improves chip evacuation which is a critical factor for successful internal grooving and face grooving operations.

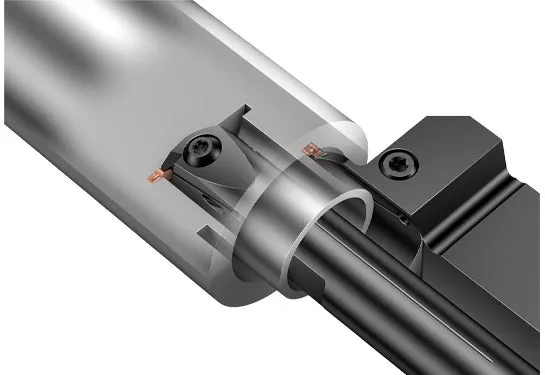

Application area
Internal grooving
- Minimum hole diameter (DMIN): 12–60 mm (0.472–2.36 inch)
- Cutting depth (CDX): 2–19 mm (0.079–0.748 inch)
Face grooving
- First cut diameter (DAXIN-DAXX): 16–102 mm (0.630–4.02 inch)
- Cutting depth (CDX): 5.5–20 mm (0.217–0.787 inch)
Product range
QS™ shanks
Face grooving:
Metric size 25×25
Inch size 1×1
CoroTurn® SL heads
Internal grooving:
Size 16, 20, 25, 32 and 40
Face grooving:
Size 32
Boring bar
Internal grooving:
Metric size 16, 20 and 25
Inch size 5/8, 3/4 and 1
Face grooving:
Metric size 25 and 40
Inch size 1
Inserts
- CW 1.85–6 mm (0.073–0.236 inch)
- Grades GC1105, GC1125, GC1135, GC1145, H13A
- Geometries -GF, -TF, -RM
Highlights
Demo: CoroCut® QI
Watch CoroCut® QI performing internal grooving, face grooving and non-linear turning with unmatched reliability and superior security.
Upgraded features
When developing CoroCut® QI, we improved the existing T-Max Q-Cut® system and went from good to great. See all the upgrades here.
High-performance parting and grooving tools
CoroCut® QI together with CoroCut® QD and CoroCut® QF completes the platform of optimized high-performance tools for parting and grooving applications.
CoroTurn® XS
Internal machining of small high quality features
High precision and repeatability
These high-quality ground tools are designed for exact cutting-edge position, enabling high precision and repeatability in internal turning machining.
Locking precision
The solid carbide boring bar fits precisely into the adaptor with a locating pin. Collet-clamped adaptors ensure rigid clamping with increased stability.
Internal coolant
All adaptors for CoroTurn® XS are designed with internal coolant supply. Collet-clamped adaptors have selectable coolant direction for better chip evacuation and safe machining.
Application area
- For internal finishing applications
- Hole diameter: 0.3–7.2 mm (0.012–0.283 inch)
- Internal turning, copying, back boring, profiling, grooving, pre-parting and threading
- Face grooving
Product range
Solid carbide tool
Sizes: 04, 05, 06, 07, 08 and 10
Grades
GC1125, GC1025, H10F, CB7014
Geometries
- Flat ground geometry with sharp edge line
- A-geometry with chip breaker for excellent chip control
Tool holding
- Collet-clamped adaptors for sliding head machines
- Cylindrical shank with 2, 3 and 4 flats, single and double ended, for sliding head machines
- Square shank adaptors for external tool post in sliding head machines
- Square shank adaptors for general lathes
- Coromant Capto® for turning and rotating applications
- Coromant EH for rotating applications
Highlights
Increase quality and productivity
Machine small features with even higher quality with grade GC1125. The optimized coating process enables longer tool life or will allow you to increase productivity. GC1125 is available on selected items for internal turning operations.
Collet-clamped adaptors for best performance
Use CoroTurn® XS with a collet-clamped adaptor to get the most out of the tool.
Expertise for medical components
Medical is one of the most technically demanding industries in the world. We have developed advanced tools and knowledge for these applications to ensure process security and increase your productivity.
