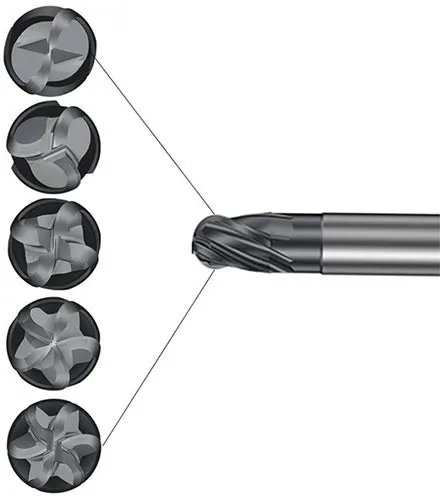

CoroMill® Plura ball nose for ISO S profiling
Profiling excellence in ISO S
CoroMill® Plura ball nose is available in Tailor Made version within the Customized solutions range.
Customized assortment
CAPP family: M281
User level: Basic, Advanced
Cutting diameter (DC): 2.00–25.00 mm (0.079─0.984 inch)
Number of flutes (ZEFP): 2, 3, 4, 5, 6
Average cutting length (APMX/DC): 1.0–3.0 × DC
Neck: Yes, No
Usable length (LU / DC): Up to 6.0 × DC
Shank (DMM): Cylindrical-HA, Weldon-HB
Coolant: External
Grade:
- T2CH, 1745 (Ti)
- R2AH, 1710 (Ni)
- H10F, 1730 (Multi)
Special tolerance: RE, DC, APMX, LU, LF
Tailor Made grade options
| |  |  |  |  |  |  | Wet | Dry |
| T2CH First choice | | | + | ++ | | | Yes | No |
| 1745 | | | + | ++ | | | Yes | No |
| 1745 Uncoated | | | | + | | | Yes | No |
| R2AH First choice | | | | ++ | + | | Yes | No |
| 1710 | | | | ++ | + | | Yes | No |
| 1730 | ++ | + | + | | | Yes | No | |
| H10F | | + | | | | ++ | Yes | No |
Advanced engineered
For when Tailor Made does not meet the demands of your specific component feature, we offer Advanced Engineered end mills. Based on our expertise, and with your cooperation, we can engineer, design and manufacture a bespoke product suited to your most complex application needs.
