CoroMill® Plura barrel for ISO S profiling
Maximizing profiling performance
Unleash profiling productivity

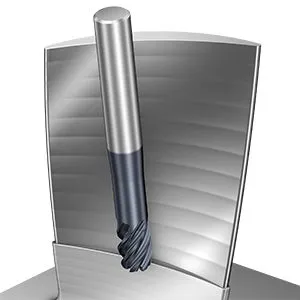

The key to success is the barrel-shaped geometry, allowing efficient profiling of complex surfaces. CoroMill® Plura barrel rises to the challenge of the most demanding requirements, ensuring optimal performance and high-quality profiling in ISO S materials.
Cut cycle times — elevate quality
The larger contact radius, compared to traditional ball nose end mills, reduces cusp height which provides superior surface finish and minimizes the need for secondary finishing operations.

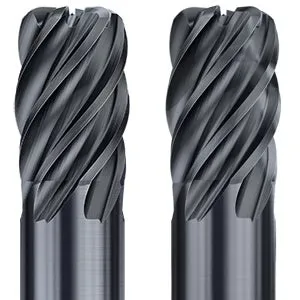

Superior performance with Zertivo® 2.0
CoroMill® Plura barrel provides two grades with Zertivo® 2.0 coating optimized for profiling of titanium alloys (T2CH) and HRSA (R2AH).
When to use
- Optimized for high-productivity surfacing, such as blade milling operations
- Semi-finishing to finishing applications
- Primary workpiece area is ISO S (titanium and HRSA)
- Secondary workpiece areas are ISO M (stainless steel), ISO P (steel) and ISO H (hardened steel)
Product range
Standard assortment

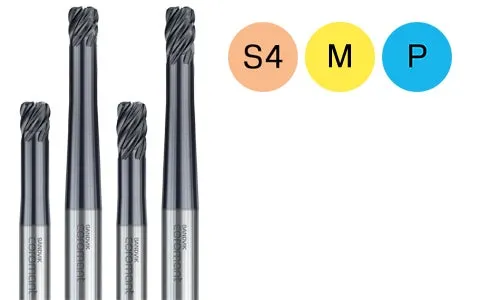

Titanium (secondary application area: ISO M and P)
- Barrel radii: 2×D and 5×D
- Number of flutes: 6
- Diameter range: 6–12 mm, 0.25–0.5 inch
- APMX: 0.9×D and 1.5×D
- Grade: T2CH

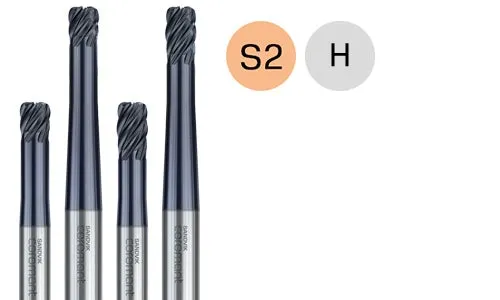

HRSA (secondary application area: ISO H)
- Barrel radii: 2×D and 5×D
- Number of flutes: 6
- Diameter range: 6–12 mm, 0.25–0.5 inch
- APMX: 0.9×D and 1.5×D
- Grade: R2AH
Features and benefits
- Barrel radius means increased step-over rates leading to major productivity gains and cycle-time reductions
- The large cutting edge contact area creates smaller cusp height, improving surface quality (Rz and Ra)
- High-performing grades enable process security with few interruptions, resulting in reduced machining time and lower cost per part
- Optimized edge preparation contributes to high tool life and reliability
- Uneven tooth pitch provides dynamic stability and reduces vibration
Additional information
Available also in Tailor Made® version within the Customized solutions range.
For complex application needs, we also offer bespoke product design and manufacturing through advanced engineered solutions.
Join us in creating a sustainable future by recycling the used carbide tools.
Experience the digital yellow coat experience with our CoroPlus® Tool Guide platform to aid your application needs.
 | Profile milling | +++ |
| Shank | Cylindrical | |
| Face geometry |  | |
| Grade | T2CH | R2AH |
| ISO material |  |  |
Tool holding recommendations
Use CoroChuck® 930 to maintain efficient production through quick and easy tool set-ups and changes.

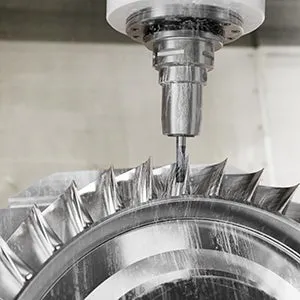

Demo: Blisk profiling
Watch our end mill profiling tools in action.
Proven solutions
Our trusted aeroengine feature solutions, refined over many years, are just a click away.
