Circular ramping with indexable insert drills

What is circular ramping with indexable insert drills?

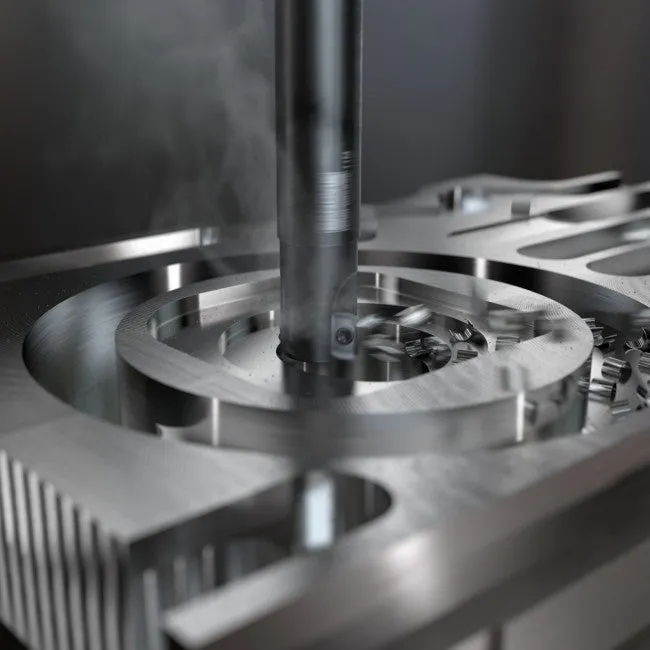

A rotating tool makes a hole by following a circular tool path, while simultaneously feeding axially. The method can be used to machine existing holes. Circular ramping with indexable insert drills is where a tool, normally about half the diameter of the hole, is used at a ramping angle recommended for the tool.
Note: Circular ramping with longer indexable insert drills is not recommended.
Indexable insert drills
Circular ramping with indexable insert drills should only be considered for certain one-off operations, or when productivity is of less importance.
- Cutting speed and feed rate can be the same as what is recommended for conventional drilling
- Max hole depth is 2 × Dc
- Max pitch is the drill insert corner radius
