Milling formulas and definitions

The milling process – definitions

Cutting speed,v_c​

Indicates the surface speed at which the cutting edge machines the workpiece.

Effective or true cutting speed, v_e

Indicates the surface speed at the effective diameter (DC_ap). This value is necessary for determining the true cutting data at the actual depth of cut (a_p). This is a particularly important value when using round insert cutters, ball nose end mills, and all cutters with larger corner radii, as well as cutters with an entering angle smaller than 90 degrees.​

Spindle speed, n

The number of revolutions the milling tool makes per minute on the spindle. This is a machine-oriented value, which is calculated from the recommended cutting speed value for an operation.

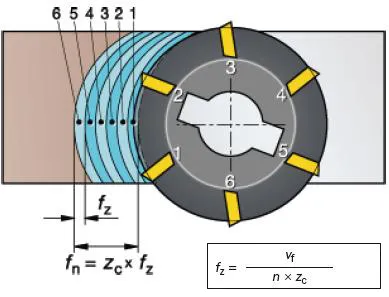

Feed per tooth, f_z

A value for calculating the table feed. The feed per tooth value is calculated from the recommended maximum chip thickness value.

Feed per revolution, f_n

Auxiliary value indicating how far the tool moves during one complete rotation. It is used specifically for feed calculations and often to determine the finishing capability of a cutter.

Feed per minute, v_f

Also known as the table feed, machine feed, or feed speed. It is the feed of the tool in relation to the workpiece in distance per time-unit related to feed per tooth and number of teeth in the cutter. The number of available cutter teeth in the tool (z_n) varies considerably and is used to determine the table feed while the effective number of teeth (z_c) is the number of effective teeth in cut. Feed per revolution (f_n) in mm/rev (inch/rev) is a value used specifically for feed calculations and often to determine the finishing capability of a cutter.

Maximum chip thickness, h_ex

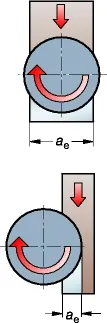

This value is a result of the cutter engagement as it is related to (f_z), (a_e) and (k_r). The chip thickness is an important consideration when deciding the feed per tooth, to ensure that the most productive table feed is employed.

Average chip thickness, h_m

A useful value in determining the specific cutting force, used for net power calculations.​

Metal removal rate, Q  (cm³/min)

The volume of metal removed in cubic mm per minute (inch³/minute). It is established using the values for cutting depth, width, and feed.

Specific cutting force, k_ct

A material constant which is a factor used for power calculations, expressed in N/mm2

Machining time, T_c  (min)

Machining length (l_m) divided by the table feed (v_f).​

Net power, P_c and efficiency, η_mt

Machine tool-oriented values, which assist in calculating the net power to ensure that the machine can handle the cutter and operation.​

Milling techniques – definitions

Linear ramping

A simultaneous straight movement in axial and radial feed directions.

Circular milling

A circular tool path on a constant z-level (circular interpolation).

Circular ramping

A circular ramping tool path (helical interpolation).

Waterline milling

Milling on a constant z-level.

Point milling

A shallow radial cut with round insert or ball nose cutters in which the cutting zone is moved away from the tool center.

Scallop

A configuration with cusps that occurs when producing sculptured surfaces.

Specific milling cutter formulas

Formulas for milling cutters having a straight cutting edge

Formulas for milling cutters with round inserts

Ball nose end mills

Internal circular ramping (3-axes) or circular milling (2-axes)

Calculated version

In a solid workpiece where D_w = 0 and a_{e eff} = D_m/2​

Feed per tooth (mm)

When widening a hole,

Formulas for external circular ramping (3-axes) or circular milling (2-axes)​

Calculated version

Milling insert definitions

Insert geometry

A closer study of the cutting edge geometry reveals two important angles on the insert:

• rake angle (γ)

• cutting edge angle (β)

The macro geometry is developed for work under light, medium, or heavy conditions.

• L (Light) geometry has a more positive but weaker edge (large γ, small β)

• H (Heavy) geometry has a stronger but less positive edge (small γ, large β)

The macro geometry affects many parameters in the cutting process. An insert with a strong cutting edge can work at higher loads but also generates higher cutting forces, consumes more power, and generates more heat. Material-optimized geometries are designated with the ISO classification letter. For example, geometries for cast iron: -KL, -KM, and -KH.
