– Carbon fiber reinforced plastics (CFRP) – Standard stocked routers
CoroMill® Plura compression router (2P460-OA)
- Ideal for woven glass layers on both sides of the component
- Optimal for thinner materials because overlap between compressed flutes reduces material vibrations
- When the tool is not oscillated, this flue design works best in flat components
- Cutting conditions – dry or with coolant
- Dual 40-degree helix angle
CoroMill® Plura low helix routers (2P050-OA and 2P051)
- Ideal for smooth and burr-free finishing passes in composites and carbon fiber reinforced plastics (CFRPs)
- When fast machining is required, these routers are designed for speed
- Optimal for challenging conditions, right or left helix options allows flexibility in material types
- Cutting conditions – dry or with coolant
- Five-degree helix angle
CoroMill® Plura serrated router (2P350-OA)
- Ideal when high material removal is required
- When needing to eliminate delamination and vibration issues as a result of patented dual cutting action
- For fast machining – geometry is designed as a one-pass solution
- Cutting conditions – dry or with coolant
- Dual 40-degree helix angle
CoroMill® Plura 2N012-COA
- +5 degrees when bottom surface is most important
- -5 degrees when top side is most important and down forces are important
- Low helix design
- Grade CD15 helps maintain sharp edges
- PCD-brazed for long tool life and excellent surface finish
– Surface milling in CFRP

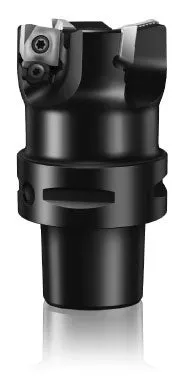

CoroMill 590
- Standard product in diameters 40 mm, 1.5" and up
- PCD and uncoated H10 grades
- High accuracy with micro adjustment
- Light cutting face mill cutter
- Steel and aluminum cutter body designs
- Indexable PCD inserts with high precision tip-seat for accuracy
CoroMill 390
- Standard product in diameters 12–125 mm, 0.5"–5"
- PCD, uncoated H13A, and coated 1010 grades
- 11 and 17 insert size
- Large radii offer
- For sculptured surfaces using sturtz method
Orbital machining in CFRP
∗ Solution to be offered as a special
- Carbide orbital machining cutters
- Also available as PCD vein edge design
- For CFRP, aluminum, and titanium stacked material combinations
∗ Special – Contact Sandvik Coromant, for more information.
Cutting data
| Milling/surface milling | CFRP | 300–500 | 984–1640 | 0.40–0.60 | 0.0157–0.0236 |
| Orbital machining | CFRP/Aluminum | 60 | 197 | 0.13 | 0.0051 |
| CFRP/Titanium | 18 | 59 | 0.08 | 0.0031 |
Tool solutions for every machine
Engineered tools and customer-specific designs make up the majority of the solutions within composite solutions, including standard stocked tools with next day delivery.
