CoroDrill® DE10

Exchangeable-tip drill for high-volume hole making

Tired of the usual trade-offs? Stability or speed. Quality or quantity. It’s time for a change. CoroDrill® DE10 is built for secure, high-feed performance without constant fine-tuning. Smooth. Stable. Seriously productive.

  • For high-volume hole making across all industries
  • Seamless plug-and-play functionality and uncompromising performance across a wide range of cutting data
  • Pre-tension interface and strong drill tip geometries enable secure and robust drilling
  • Optimized chip flute geometry with two twisted coolant holes for good chip evacuation and hole quality
  • Quick and easy tip changes, no spare parts needed

Operation(s)
Drilling
Tool type
Indexable
Diameter range.
9–17.9 mm
Length(s)
3xD, 5xD, 8xD
Workpiece material(s)
P
M
K
N
S
H
Redefining plug-and-play​

The -M5 tip geometry is unique, and offers uncompromising performance in all materials and a wide range of cutting data. With this one-size-fits-all design, CoroDrill® DE10 is easy to apply and exceptionally useful for mixed production.

And when you need to take optimization a step further, the -M5F and -M5C geometries offer the same ease of application while being tailored to meet specific requirements.

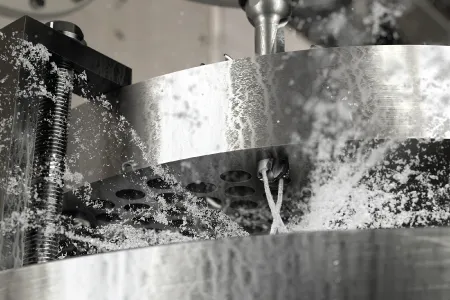

Excellence in high feeds

CoroDrill® DE10 offers peak performance at high feeds and speeds, leveraging its unique geometry, high-performance grades and robust design.​ Increase your feed by 40% and watch your productivity and cost efficiency soar. Plus, you will reduce your CO2 emissions per operation by approximately 20% (recorded in reference testing).​

Get more from every drill

When paired with recommended feeds and speeds, CoroDrill® DE10 delivers unmatched tool life with an average increase of 40% or more, regardless of the material.​ Expect high, consistent quality from beginning to end and reduced cost per hole.​

High optimization potential

The universal -M5 geometry delivers reliable plug-and-play functionality across a wide range of applications. In addition, there are two powerful geometries, -M5F and -M5C, designed to take your optimization to the next level.

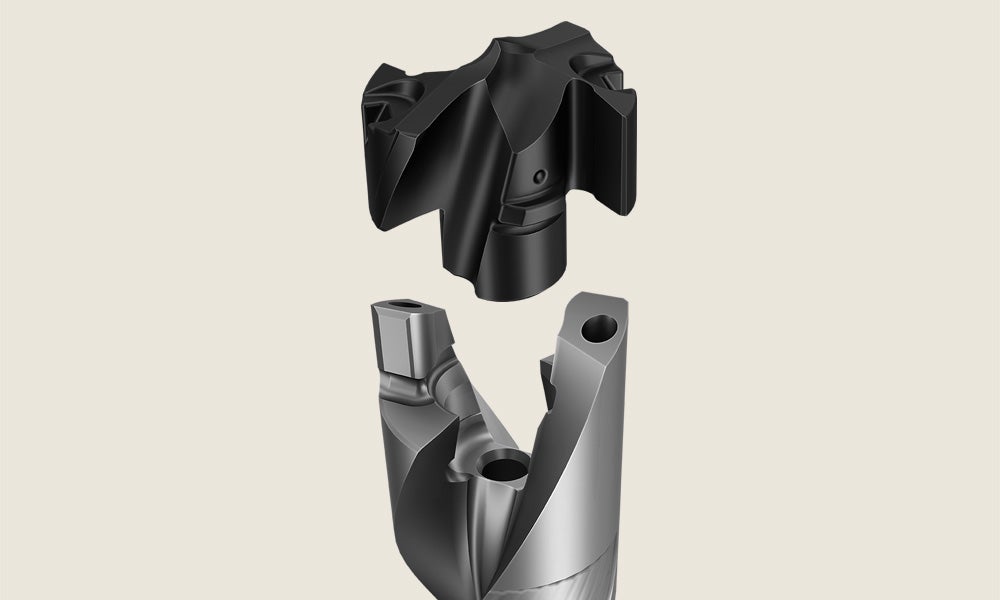

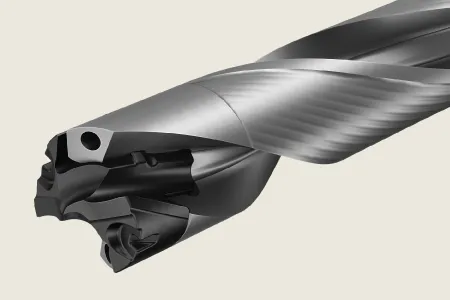

Best-in-class pre-tension interface
Familiar design with a new level of security

The pre-tension clamping interface of CoroDrill® DE10 is just like the ones you are accustomed to, but with next-level security. This patented solution is the most robust design of its kind, offering:​

  • Quick and easy tip changes, no spare parts needed​
  • Trouble-free drilling at high feeds and speeds​
  • Strength and high clamping forces ​
  • Good centering capabilities leading to straighter holes and tighter tolerances​
  • More drill tips per drill body​
Watch and read to learn more
Demo: CoroDrill® DE10

Watch CoroDrill® DE10 in action.

The game changer

See how a customer transformed their machining with CoroDrill® DE10.

Customer story

A drilling breakthrough with CoroDrill® DE10. chevron_right

Meet the innovators

Discover the minds behind CoroDrill® DE10.

CoroDrill® DE10 up close

A quick guide to the features and benefits that make the difference.

Application

  • For high-volume hole making across all industries
  • Typical components include heat exchanger plates, automotive components, shafts, pumps and valves, flanges and structural I & H steel beams
  • H9/H10 hole tolerance
  • Can be used in a variety of drilling applications


Conventional drilling

Inclined exits

Inclined surfaces

Cross holes

Stack drilling

Convex/concave surfaces

Product range

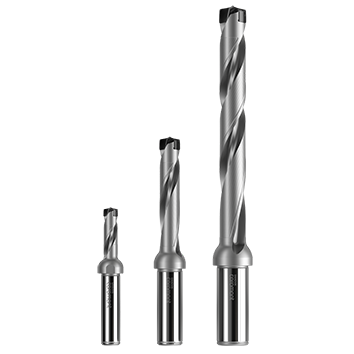

Drill bodies

  • Cylindrical shank, diameter: 9.00–9.90 mm (0.354–0.390 inch)
  • Cylindrical shank with flat (ISO 9766), diameter: 10.00–17.90 mm (0.394–0.705 inch)
  • Drill depths: 3, 5 and 8×D

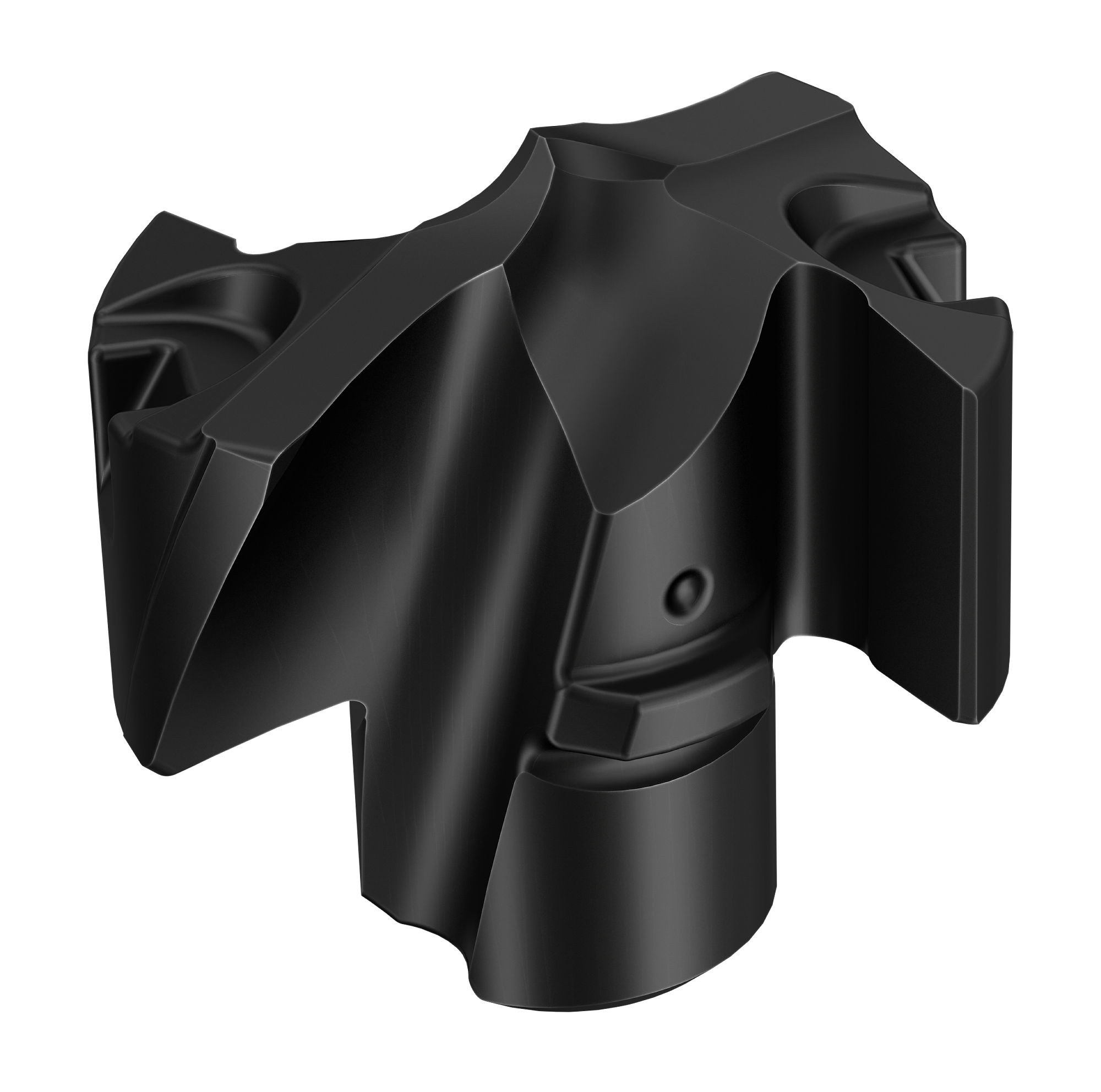

-M5 geometry

  • Universal geometry
  • Diameter: 9.00–17.90 (0.354-0.705) (available in 0.1 mm increments)
  • Grades: GC4334, GC2334

-M5F geometry

  • For flat-bottom holes and advanced applications
  • Diameter: 9.00–17.50 (0.354–0.689) (available in 0.5 mm increments)
  • Grade: GC4334

-M5C geometry

  • For cast iron and when extra corner strength is required
  • Diameter: 9.00–17.90 (0.354-0.705) (available in 0.1 mm increments)
  • Grade: GC3334

Tailor Made®​

  • Drill bodies: 2–8×DC
  • Drill tips: GC2334, GC4334, H10F (DC available in 0.01 mm increments)

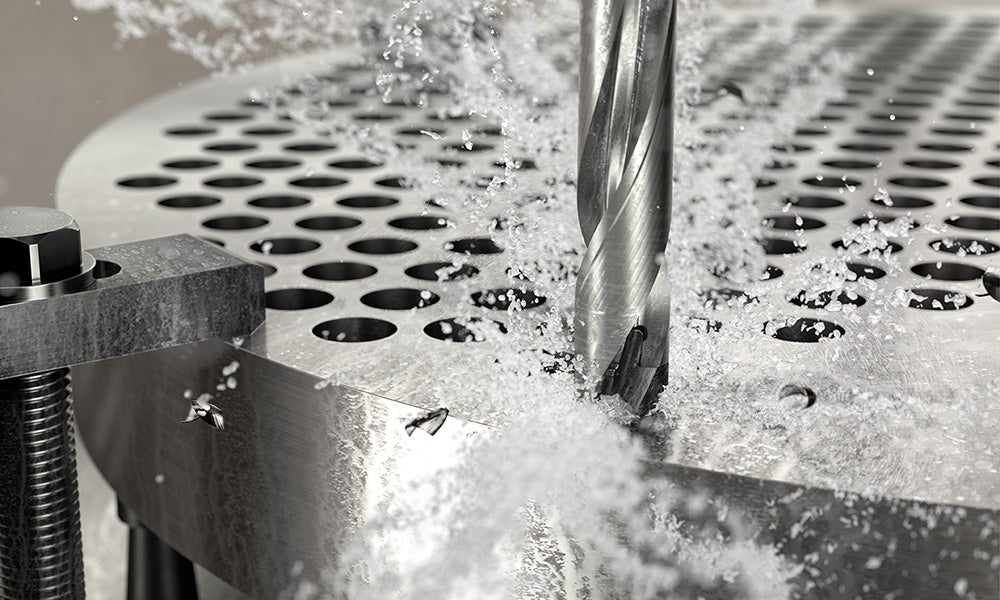

Sustainable drilling, drill and accessories
Resource efficiency

Designed for efficiency, CoroDrill® DE10 enables higher cutting parameters and faster metal removal. It is not only about increasing output – improved machine utilization reduces energy consumption and, in turn, your overall carbon footprint.

The robust design ensures consistent wear patterns and extends tool life, minimizing waste and supporting responsible manufacturing goals.

In addition, the mounting key made of hardened stainless steel and the plastic cover are also easily recyclable.

Assortment

more_horiz













Start by selecting one or more products

close

Start by selecting one or more products

close

Success stories

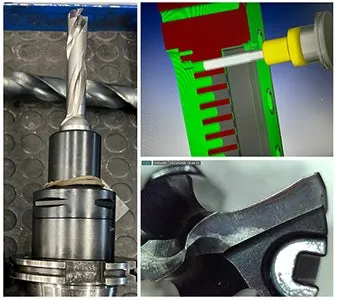

Outperformed competitor in stainless steel

Country: Italy
Component
:​ Plate
Material:​ M1.0.Z.AQ, AISI316L, austenitic stainless steel
Operation:​ 52 mm (2.05 inch), one part through hole and one part blind hole
Machine:​ Doosan NHP6300
Coolant:​ Emulsion 8%, 70 bar (1015 PSI)

Cutting data
keyboard_arrow_down

CompetitorCoroDrill® DE10
Tool-DE10-D1600-160L20-5
Insert-DE10-1650-160-M5 4334
vc, m/min (ft/min)40 (131)55 (180)
n, rpm7721060
fn, mm (inch)0.14 (0.0055)0.16 (0.0063)
vf, mm/min (in/min)108 (4.25)170 (6.69)
Tool life, holes126180
Tool life, m (ft)6.6 (21.7)9.3 (30.5)
Tool life, minutes6155

Result

+57%

Productivity

+43%

Tool life

-36%

CO2 emissions per year

Due to the cost of the component, reliability and repeatability are the most important factors for the customer. CoroDrill® DE10 has a very good sound level and similar chips to the competitor tool. The hole surface quality is good and the hole diameter is in line with expectations. Even longer tool life expected with grade GC2334.

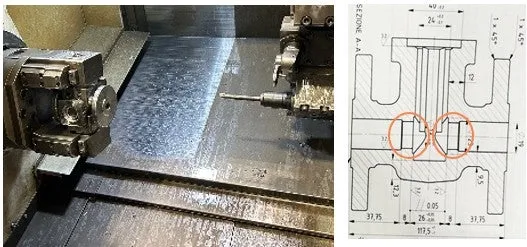

Unmatched performance in difficult application

Country: Italy
Component
:​ Valve
Material:​ M3.2.Z.AQ, machined super duplex stainless steel
Operation:​ Through hole, 2×10 mm (2×0.394 inch) deep, irregular exit
Machine:​ Doosan GT3100
Coolant:​ Emulsion 10%

Cutting data
keyboard_arrow_down

CompetitorCoroDrill® DE10
Tool-DE10-D1700-170L20-5
Insert-DE10-1710-170 M54334
vc, m/min (ft/min)43 (141)50 (164)
n, rpm800930
fn, mm (inch)0.08-0.06 (0.0031-0.0024)0.15-0.1 (0.0059-0.0039)
vf, mm/min (in/min)64-48 (2.52-1.89)140-93 (5.51-3.66)
Tool life, holes6060
Tool life, m (ft)0.3 (0.98)0.3 (0.98)
Tool life10.25.4

10 pieces

30 pieces

Result

+89%

Productivity

-54%

CO2 emissions per year

The customer has problems with long chips wrapping around the drill. Uses low entering feed in steps and has poor productivity and tool life

CoroDrill® DE10 offers improved productivity and chip breakage, with no chips wrapped around the drill. When tested with the same cutting parameters, CoroDrill® DE10 doubled the tool life. Even longer tool life expected with grade GC2334.

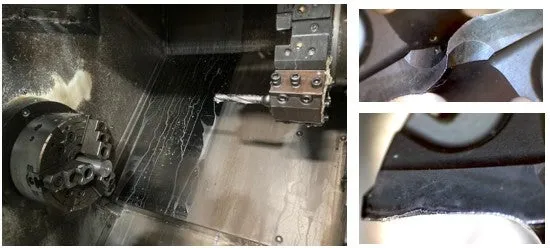

Excellent performance in lathe application

Country: India
Component
:​ Pin
Material:​ P2.1.Z.AN, 17Cr3, alloyed steel
Operation:​ 84 mm (3.31 inch) drilling in lathe
Machine:​ RoboTurn FAR
Coolant:​ Emulsion

Cutting data
keyboard_arrow_down

CompetitorCoroDrill® DE10
Tool-DE10-D1700-170L20-5
Insert-DE10-1750-170-M5 4334
vc, m/min (ft/min)71 (233)97 (318)
n, rpm13001765
fn, mm (inch)0.2 (0.0079)0.22 (0.0087)
vf, mm/min (in/min)260 (10.2)388 (15.3)
Tool life, holes12001650
Tool life, m (ft)101 (331.4)138 (452.8)
Tool life338357

Result

+49%

Productivity

+37%

Tool life

-34%

CO2 emissions per year

Chip breaking and chip control are very important for the customer and chips should not obstruct the operation of the conveyor and gantry. The competitor solution creates inconsistent chips and snarls of varied lengths are reported. With CoroDrill® DE10, we provided increased productivity and tool life, with good corner security and chips.

How to use

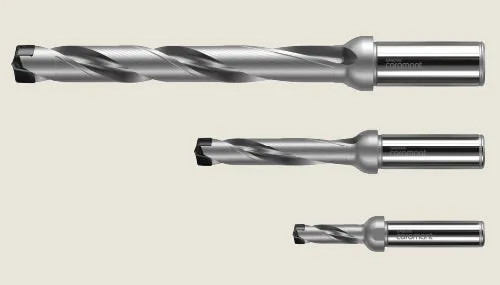

Apply 3–8×DC drills

There is no difference in applying 3×D or 8×D with regard to the feed recommendations. The applied cutting data should be within the recommendations.

CoroPlus® Tool Guide

Find the latest updated cutting data for all material groups and articles in CoroPlus® Tool Guide. Set the workpiece parameters and the system generates starting point cutting data.

Find out more about reamers

General recommendations

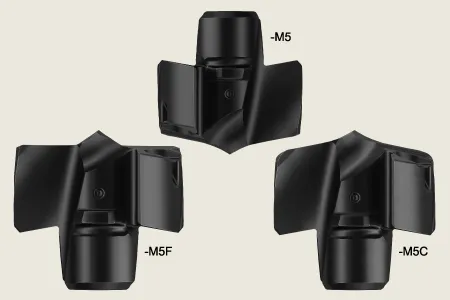

Geometries

-M5
  • Offers uncompromising performance for all materials in a wide range of cutting data
  • Very easy to apply and exceptionally suitable for customers with mixed production
-M5F
  • Use when a flat bottom (180 degrees) is required
  • Good for pre-drilled holes and as a pilot drill when improved hole accuracy/positioning is required
  • Provides good function in advanced applications thanks to favorable cutting forces, minimizing drill body deflection
-M5C
  • Optimized micro geometry for cast iron materials
  • Has a larger corner chamfer compared to -M5, reducing the risk of hole exit breakouts in ISO K workpiece materials
  • Good option for applications where extra corner strength is needed

Grades

GC3334
  • A hard and fine-grained substrate, further increasing the wear resistance
  • Thick PVD coating (AlTiN) produced with Zertivo® technology
GC4334
  • Tough, fine-grained substrate with high Cr content and PVD coating (AlTiN) produced with Zertivo™ technology
  • High reliability with improved edge security offers resistance against built-up edge and chipping
GC2334
  • Tough, fine-grained substrate with high Cr content and a thin, multi-layer PVD coating (AlTiCrN) produced with Zertivo® technology
  • For high reliability and improved resistance against chipping and flaking on land margin

Drilling through-holes

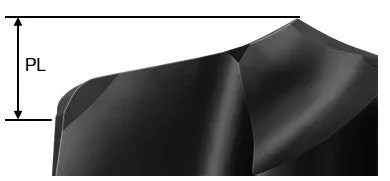

When drilling through holes, use point length (PL) + 1 mm (0.039 inch) to ensure the drill tip is completely through the hole exit. The exact PL value is found on the article’s web page.

-M5 geometry
keyboard_arrow_down
Drill tip interface sizeDC min–max, mmPL min–max, mmPL min–max, inch
09009.00–09.491.27–1.310.050–0.052
09509.50–09.991.34–1.380.053–0.054
10010.00–10.491.41–1.450.056–0.057
10510.50–10.991.48–1.520.058–0.060
11011.00–11.491.55–1.590.061–0.063
11511.50–11.991.62–1.660.064–0.065
12012.00–12.491.69–1.730.067–0.068
12512.50–12.991.76–1.800.069–0.071
13013.00–13.491.83–1.870.072–0.074
13513.50–13.991.90–1.940.075–0.076
14014.00–14.991.99–2.070.078–0.081
15015.00–15.992.13–2.210.084–0.087
16016.00–16.992.27–2.340.089–0.092
17017.00–17.992.41–2.490.095–0.098
-M5C geometry
keyboard_arrow_down
Drill tip interface sizeDC min–max, mmPL min–max, mmPL min–max, inch
09009.00–09.401.76–1.790.069–0.071
09509.50–09.901.85–1.880.073–0.074
10010.00–10.401.94–1.980.076–0.078
10510.50–10.902.04–2.080.080–0.082
11011.00–11.402.14–2.170.084–0.086
11511.50–11.902.23–2.270.088–0.089
12012.00–12.402.33–2.360.092–0.093
12512.50–12.902.42–2.450.095–0.097
13013.00–13.402.51–2.550.099–0.100
13513.50–13.902.61–2.640.103–0.104
14014.00–14.902.75–2.830.108–0.112
15015.00–15.902.93–3.020.115–0.119
16016.00–16.903.12–3.200.123–0.126
17017.00–17.903.31–3.390.130–0.134

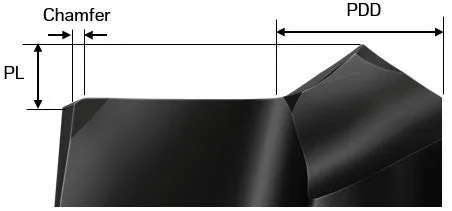

-M5F geometry
keyboard_arrow_down
Drill tip interface sizeDC min–max, mmChamfer, mmPDD, mmPL, mm
09009.00–09.490.103.10.91
09509.50–09.990.113.30.95
10010.00–10.490.113.51.00
10510.50–10.990.123.71.05
11011.00–11.490.123.91.10
11511.50–11.990.134.01.15
12012.00–12.490.134.21.19
12512.50–12.990.144.41.24
13013.00–13.490.154.61.29
13513.50–13.990.154.81.34
14014.00–14.990.165.11.40
15015.00–15.990.175.51.50
16016.00–16.990.185.91.60
17017.00–17.990.196.31.70


Drill tip interface sizeDC min–max, mmChamfer, inchPDD, inchPL, inch
09009.00–09.490.0040.1220.036
09509.50–09.990.0040.1300.038
10010.00–10.490.0040.1380.039
10510.50–10.990.0050.1460.041
11011.00–11.490.0050.1540.043
11511.50–11.990.0050.1570.045
12012.00–12.490.0050.1650.047
12512.50–12.990.0060.1730.049
13013.00–13.490.0060.1810.051
13513.50–13.990.0060.1890.053
14014.00–14.990.0060.2010.055
15015.00–15.990.0070.2170.059
16016.00–16.990.0070.2320.063
17017.00–17.990.0070.2480.067

Advanced operations

Note: These advanced operations are not recommended, but if necessary, follow the guidelines below. Results may vary depending on workpiece material and drill length and the number of drill tip changes can be significantly reduced.

Angled surface entry Angled surface exit Convex surface Concave surface Cross holes
Preconditions Angle ≤ 10º Angle ≤ 30º Minimum surface radius: 4×DC Minimum surface radius: 1×DC Minimum recommended diameter on the hole to be crossed: 2×DC
Cutting speed, vc Use the recommended value for the workpiece material
Feed, fn Start value; reduce to 1/3 of recommended feed rate

Run-out

Run-out is affected by the machine condition, holder and mounting, for example.

Preferable: ≤ 0.03 mm (0.0012 inch)
Acceptable: ≤ 0.06 mm (0.0024 inch)
Not acceptable: > 0.06 mm (0.0024 inch)

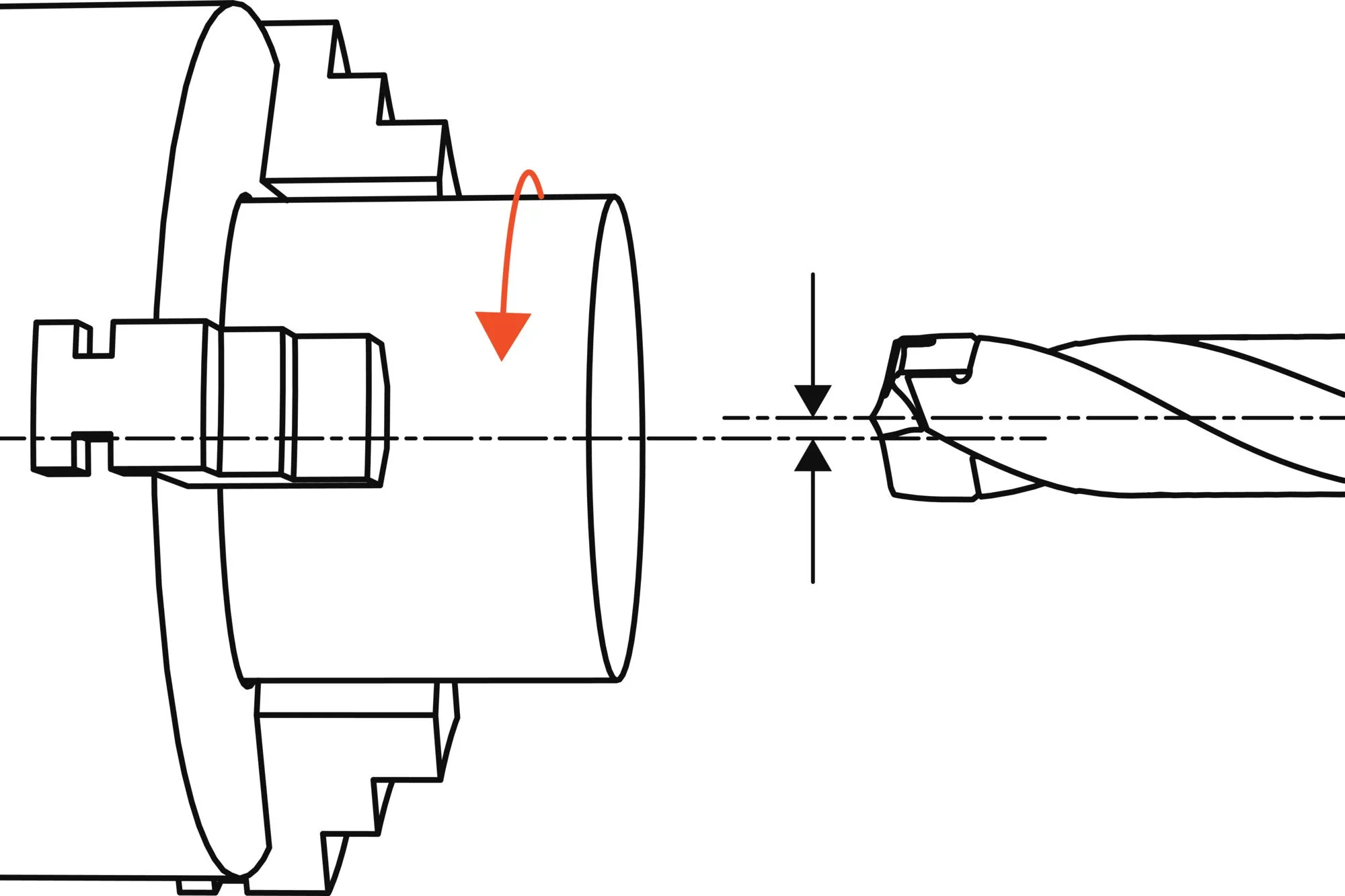

Turning applications

In non-rotating drill applications, major misalignment greatly affects process security and tool stability. Always follow these recommendations.

Preferable ≤ 0.10 mm (0.0039 inch)
Acceptable ≤ 0.20 mm (0.0079 inch)
Not acceptable > 0.20 mm (0.0079 inch)

Coolant

  • Internal coolant is recommended for safe chip evacuation
  • Apply sufficient coolant flow and follow the recommendation on emulsion concentration from your supplier
  • When drilling deep holes, sufficient coolant flow is crucial to enable proper chip evacuation
  • Increased pressure/coolant flow will improve chip evacuation further

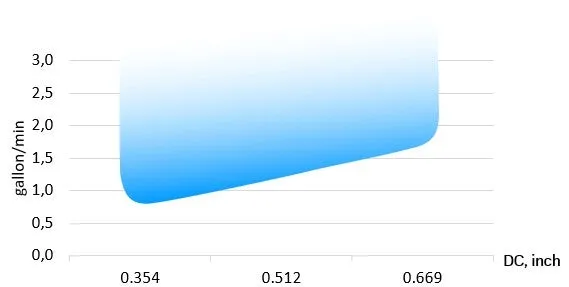

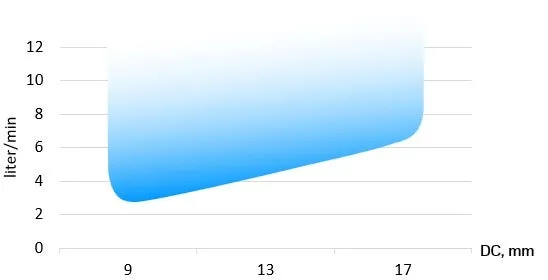

Recommended minimum cutting fluid flow


Accessories and assembly

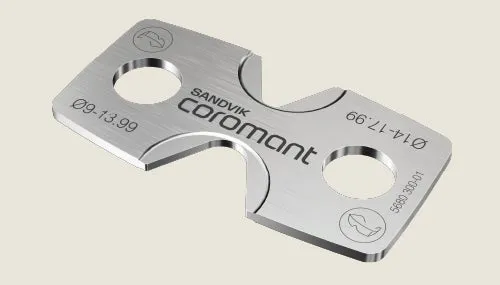

Mounting key

A mounting key is included in each drill box and covers the complete drill range. The mounting key offers great visibility during the assembly process and is easily recyclable.

Order no: 5680 300-01

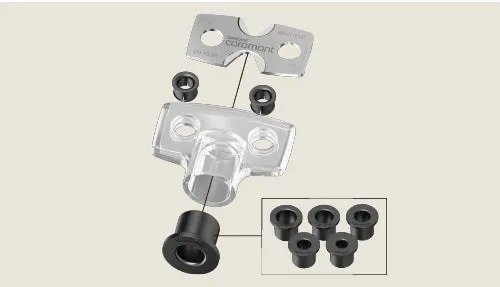

Plastic cover with collar

The plastic cover improves ergonomics and avoids the risk of carbide splintering. The see-through design and guiding collars make it easy to use.

Order no: 5680 300-20

Assembly instruction

  1. Lubricate the contact surfaces before mounting the drill tip to maximize the interface tool life.
  2. Place the drill tip in the tip seat, rotating it ~60 degrees from the final position. Position the key in the key grips.
  3. Mount/unmount the tip.
