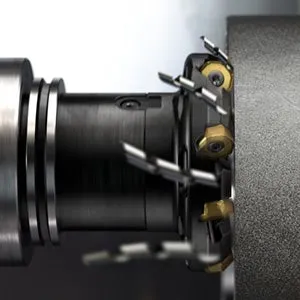

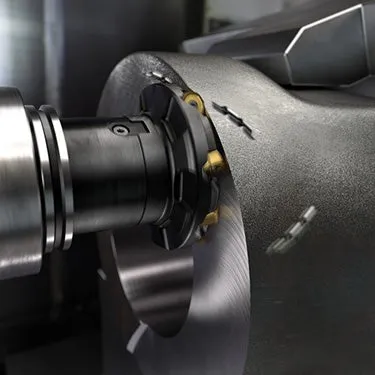

Multi-edge face milling cutter for best production economy
The double-sided, multi-edge design and the 42° entering angle make it a cost-efficient solution. It offers high productivity and a low cost per edge.
Available with a 42° entering angle for larger cutting depths and as a high feed version with a 25° entering angle for an even higher metal removal rate. Same inserts are used in both cutters.

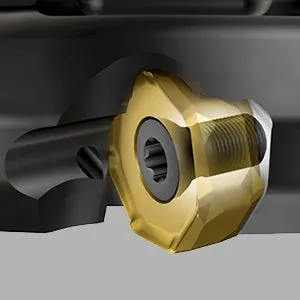

The secure tip seat and the large, robust insert with strong, light-cutting geometries are designed for reliable and predictable machining.
Diameter range: 63–315 mm
(2.500–12.000 inch)
APMX: 5.2 mm (0.205 inch)
Pitch: Close (M), close (MD) and extra-close (H)
Through coolant up to diameter 160 mm
(6.000 inch)
Coupling: Arbor, Coromant Capto®, CIS arbor
Diameter range: 63–160 mm (2.5–6 inch)
APMX: 2.8 mm (0.110 inch)
Pitch: Close (M) and extra-close (H)
Through coolant up to diameter 160 mm (6.000 inch)
Coupling: Arbor, Coromant Capto®
Insert size (IC): 21
Cutting edges: 14
Geometries: E-M30, E-M31, E-M50, E-H50
Precision-ground inserts for high accuracy

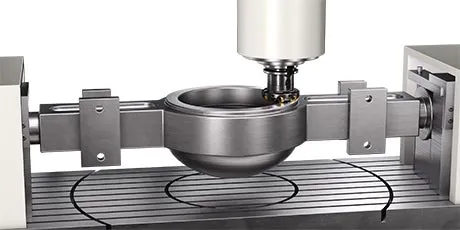

The unique differential MD pitch is First Choice in roughing operations where light cutting action is required, e.g., in vibration-sensitive and weak setups. It is a perfect problem-solver when vibration is a limitation in the production.
The length and weight of the cutter body has been reduced in order to boost the performance in low-productive applications. The cutter has a logarithmic differential pitch design, and the insert position is radially compensated to produce an even chip load on every insert.
The differential MD pitch is available up to a diameter of 160 mm (6.000 inches)
