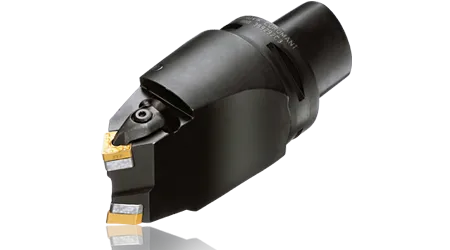

CoroPlex® TT

CoroPlex TT is a twin tool with great flexibility. With two turning inserts on the same tool, substantial tool changing time is saved. CoroPlex TT gives you a variety of solutions for most turning operations.

Benefits

• One milling and four turning tools in one
• Reduced tool changing time
• Saves tool pockets in tool magazine

Features

• Flexible tool holders optimized in length, stability
• Coolant solution for multi-task machines
• Quick change and modularity with Coromant Capto®
• CoroTurn® RC insert clamping system with wide flexibility

Applications

• Insert geometries and grades for all materials

ISO application area

Flexibility with multi-task machining

Recommendation

To apply the twin tool, move the Y-axis the distance, so that the insert will cut on the center line of the work piece. When working against a sub-spindle, the Y-axis must be offset in the opposite direction in relation to the main spindle.
