CoroMill® MS60
True versatility in shoulder and face milling operations

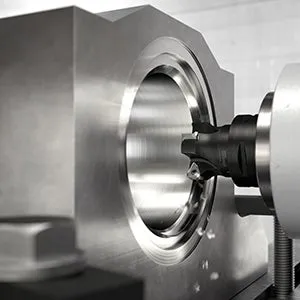

Experience true versatility
The dependable and cost-effective CoroMill MS60 concept is specifically engineered for 90° shoulder milling but excels in a wide range of applications – from face milling to ramping, pocketing, and modern dynamic milling.

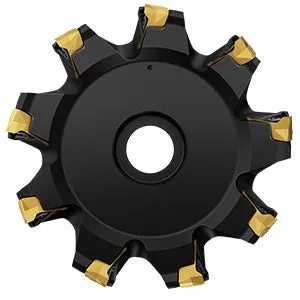

Efficiency at a low cost
Featuring 6 indexing options, this tool offers a cost-effective solution, ensuring exceptional efficiency across various milling operations.
Six-edged magnificence
The double-sided inserts offer ramping capabilities, up to a cutting depth of 8 mm (0.315 inch), and a wiper edge for superior surface finish.

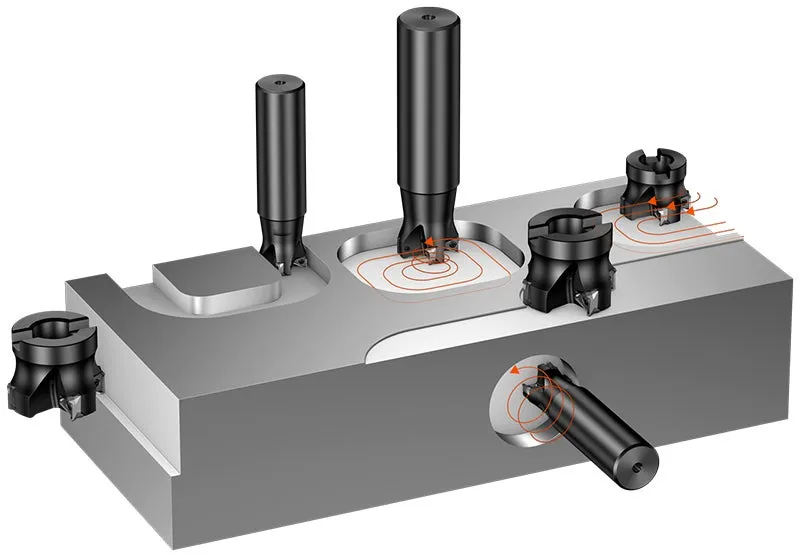

Application
Application areas:
- Roughing and semi-finishing shoulder and face milling applications where traditionally a multi-edge or tangential milling solution is used
- True 90° shoulder milling operations
- Ramping operations
- Main application areas: ISO P and ISO K
- Secondary application areas: ISO M and ISO S
For general engineering of components such as:
- Housing/casing, pump and valve parts, machine bed, machine table, headstock
ISO application area
Product range
Cutter body, cylindrical shank
- Diameter range, metric: 25 and 32 mm
- Diameter range, inch: 1 and 1¼ inch
- Entering angle (KAPR): true 90°
- Internal coolant
- Cutter bodies with differential close (H) and course (M) pitch
- Ramping capability
Cutter body, arbor
- Diameter range, metric: 40–100 mm
- Diameter range, inch: 11/2 – 4 inch
- Entering angle (KAPR): true 90°
- Internal coolant
- Cutter bodies with differential close (H) and course (M) pitch
- Ramping capability
Insert
- Insert IC size: 9.6 mm (0.378 inch)
- Entering angle: true 90º
- Maximum depth of cut: 8.0 mm (0.315 inch)
- Corner radius: 0.8 mm (0.031 inch)
- Wiper edge length land: 1.6 mm (0.063 inch)
- Direct pressed with ramping feature
