CoroMill® Plura lollipop for ISO S profiling
For hard-to-access features
CoroMill® Plura ball nose is available in the Tailor Made® version within the Customized solutions range.

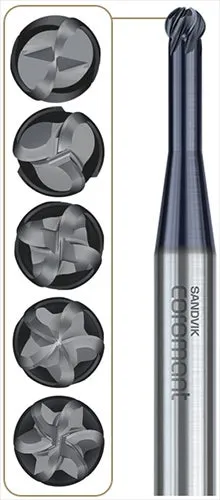

Customized assortment
CAPP family: M283
User level: Basic, Advanced
Ball nose radius (RBN): 1.00–8.00 mm (0.0393–0.3125 inch)
Number of flutes (ZEFP): 2, 3, 4, 5, 6
Usable circumference: 250 degrees
Usable length (LU / DC): Up to 3.75×DC
Usable length (LB / DC): Up to 15×DC
Shank (DMM): Cylindrical-HA, Weldon-HB
Shank (DCON): 3–25 mm (0.118–0.984 inch)
Coolant: External
Grade:
- T2CH, 1745 (Ti)
- R2AH, 1710 (Ni)
- H10F, 1730 (Multi)
Special tolerance: RBN, APMX, LU, LF
Advanced user customization: Rake angle, edge rounding, cylindrical land and multi-material grade
Tailor Made® grade options
| |  |  |  |  |  |  | Wet | Dry |
| T2CH | | + | ++ | | Yes | No | ||
| 1745 | | + | ++ | | Yes | No | ||
| 1745 Uncoated | | | | + | | Yes | No | |
| R2AH | | | | ++ | + | Yes | No | |
| 1710 | | | | ++ | + | Yes | No | |
| 1730 | ++ | + | + | | | Yes | No | |
| H10F | | | + | ++ | | | Yes | No |
Advanced Engineered
For when Tailor Made does not meet the demands of your specific component feature, we offer Advanced Engineered end mills. Based on our expertise, and with your cooperation, we can engineer, design, and manufacture a bespoke product suited to your most complex application needs.
