CoroCut® QI
Optimized for internal grooving and face grooving on small diameters
How to choose a face grooving tool
A- or B curve
Insert width (CW)
Use the widest insert and tool that can be used for your groove. A wider holder has greater stiffness and gives more stability.
Maximum cutting depth (CDX)
Always use a tool with the shortest possible cutting depth (CDX) to obtain maximum stability.
Diameter range of the first cut (DAXIN and DAXX)
Use the tool for the largest diameter that fits your groove. A tool for a larger diameter is less curved and hence more stiff and stable. It also offers improved chip control.
Application tips
Internal grooving methods
Depending on the application, there are a few different strategies to consider for internal grooving.
Learn more about how to apply roughing with a non-linear tool path, roughing with radial feed, roughing with side turning and finishing, among other important considerations.
Face grooving methods
Depending on application, there are a few different strategies to consider when face grooving.
Learn more about how to apply roughing with axial feed, roughing with side turning and finishing, among other important considerations.
Overhang
To avoid vibration, the setup should have the shortest overhang with the lightest cutting geometry.
Recommendations
Geometries
|
|
| |
| -GF | -TF | -RM | |
| Application: |
|
|
|
| Features: |
|
|
|
Grades
| GC1105 | GC1125 | GC1135 | GC1145 | H13A | |
| Materials: | ISO S, M and N | ISO P, M, K, and S | ISO P and M | ISO P, M and S | ISO N and S |
| Features: |
|
|
|
|
|
| Geometries: | -GF, -TF, -RM | -GF, -TF, -RM | -TF, -RM | -GF, -TF | -GF |
First choice grades and geometries
 |
|
 |
|
|
| Internal groove | Internal wide groove | Face groove | Profiling internal/face | |
| ISO P | -GF GC1125 | -TF GC1125 | -TF GC1125 | -RM GC1125 |
| ISO M | -GF GC1145 | -TF GC1135 | -TF GC1145 | -RM GC1135 |
| ISO K | -GF GC1125 | -TF GC1125 | -TF GC1125 | -RM GC1125 |
| ISO N | -GF H13A | -TF GC1105 | -TF GC1105 | -RM GC1125 |
| ISO S | -GF GC1105 | -TF GC1105 | -TF GC1105 | -RM GC1105 |
EasyFix™

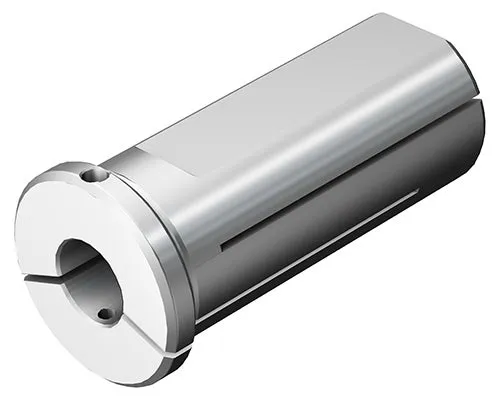

Always use CoroCut® QI bars with EasyFix™ collets. A spring plunger mounted in the sleeve clicks into a groove in the bar to guarantee the correct center height for each tool setup. The metal seal offers good performance for coolant pressure up to 150 bar.
Code key
QS™ shanks
| QS | - | QI | - | R | F | G | 15 | C | 2525 | - | 016 | B |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
CoroTurn® SL head
| SL | - | QI | - | R | G | 18 | C | 32 | - | 024 | A |
| 1 | 2 | 3 | 5 | 6 | 7 | 8 | 9 | 10 |
Boring bar
| QI | - | R | AF | G | 06 | C | 25 | - | 016 | A |
| 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
- QS: Quick change system for shanks
SL: CoroTurn® SL cutting heads - Product family
- R: Right hand tool
L: Left hand tool - F/G: 0º/90º holder style (shanks)
AF/AG: Face/internal grooving boring bar
- Insert seat size, E/F/G/H/J/K
- Cutting depth (CDX)
- C: Through coolant
- Shank/coupling size
- Face: DAXIN, min diameter for first cut
Internal: Dmin1, min hole diameter - Face: A/B type of curve
Inserts
| QI | - | N | G | - | 0300 | - | 00 | 02 | - | GF |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |
- Product family
- Cutting edge angle
N = Neutral inserts - Insert seat size
E: 1.85–2.39 mm
F: 2.46–2.79 mm
G: 3 mm
H: 4 mm
J: 5 mm
- Insert width (CW)
0600: 6 mm
0500: 5 mm
0400: 4 mm
0300: 3 mm
0200: 2 mm - Front insert angle
00: No angle, 0° - Insert corner radius
02: 0.2 mm
03: 0.3 mm
04: 0.4 mm
- Insert geometry
TF: For grooving and side turning
GF: Ground for grooving
RM: For profiling
