CoroMill® Plura lollipop for ISO S profiling
For hard-to-access features
Application recommendations
Choose the most stable tool variant with the shortest overhang possible

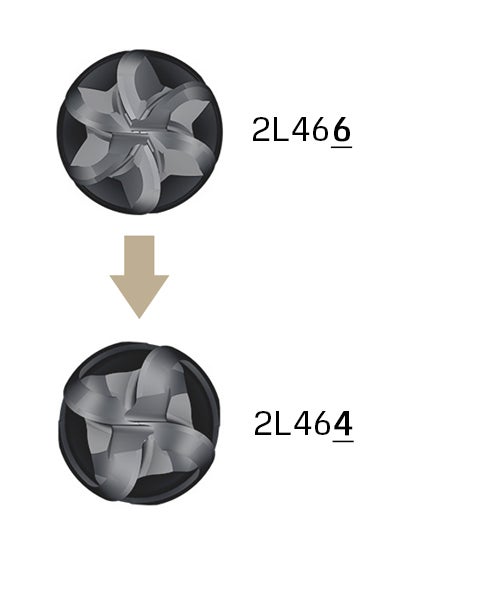

For unstable conditions / long overhang, reduce no. of flutes

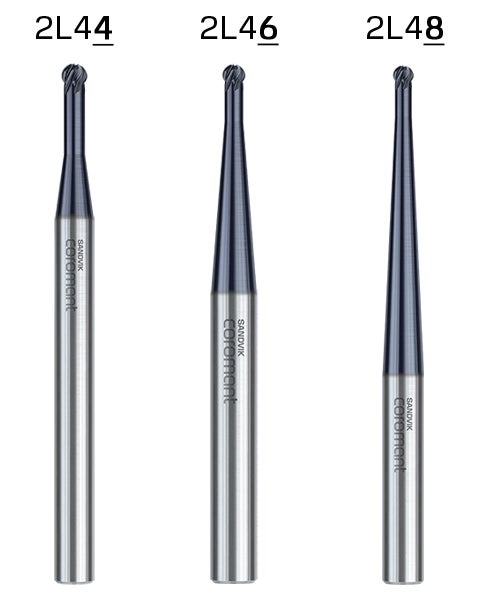

Standard assortment

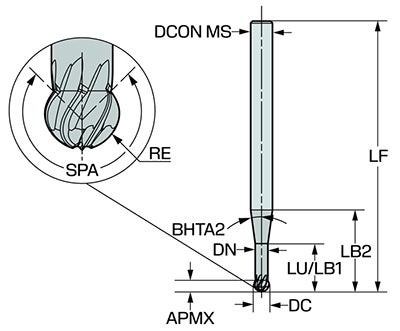

APMX: 0.8xD
Shank: Cylindrical
Neck: Y
Spherical angle (SPA): 250°
| Product code HRSA, grade R2AH | Product code Ti, grade T2CH | DC, mm (inch) | DCONMS, mm (inch) | ZEFF | LU | LB2 |
| 2L444-RA | 2L444-TA | 2 | 6 | 4 | 3.5×DC | 7×DC |
| 2L464-RA | 2L464-TA | 2 | 6 | 4 | 2.5×DC | 10×DC |
| 2L484-RI | 2L484-TI | 2 | 6 | 4 | 2.5×DC | 15×DC |
| 2L445-RA | 2L445-TA | 3 (0.125) | 6 (0.25) | 5 | 3.5×DC | 6×DC |
| 2L465-RA | 2L465-TA | 3 (0.125) | 8 (0.3125) | 5 | 2.5×DC | 10×DC |
| 2L485-RI | 2L485-TI | 3 (0.125) | 8 (0.3125) | 5 | 2.5×DC | 15×DC |
| 2L446-RA | 2L446-TA | 4–10 (0.1875–0.3750) | 6–10 (0.25–0.375) | 6 | 3.3–3.7×DC | 6×DC |
| 2L466-RA | 2L466-TA | 4–10 (0.1875–0.3750) | 8–16 (0.375–0.625) | 6 | 2.3–2.7×DC | 8–10×DC |
| 2L486-RI | 2L486-TI | 4–10 (0.1875–0.3750) | 8–16 (0.375–0.625) | 6 | 2.3–2.7×DC | 10–15×DC |
Cutting data recommendations
