CoroTap® 100
CoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. For long chipping ISO P materials, the chip breaker design is appropriate. The taps are suitable for both through and blind holes.
Demo: CoroTap® 100 –PM
See the chip-breaking technology in action.
Long tool life reduces costs
CoroTap™ 100 is made of HSS-E-PM and solid carbide, for superior wear resistance and tool life. This results in fewer machine stoppages and reduced cost-per-hole.
Superior process security
Optimized geometries allow for reliable, predictable tool life in both through and blind-hole applications.
Excellent thread quality
Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.

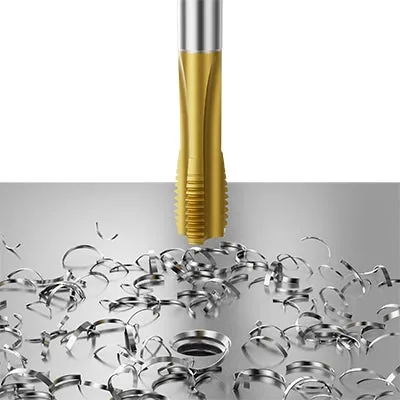

Chip control CoroTap® 100 -PM
The chip-breaking design prevents bird nesting, reducing machining delays and tool breakage without compromising thread quality.
The tapping range consists of Optimized and Customized solutions within the Solid Round Tools product offer.
- Optimized solutions feature a unique line of refined tools for specific needs that offer extreme efficiency, reliability and durability.
- Customized solutions feature Tailor Made and Advanced Engineered products, individually designed to meet the highest demands on performance.
Application area
CoroTap® 100 -KM, -NM, -HD
- Taps with straight flutes
- Suitable for tapping in through and blind-hole applications in short-chipping materials
- Variety of thread forms and standards
- External and internal coolant delivery
- Suitable for all industry segments, primarily automotive
- Unique grades for HSS-E-PM and solid carbide
 | Cast iron |
 | Non-ferrous materials |
 | Hardened steel |
CoroTap® 100 -PM
- Optimized for steel components
- Solves poor chip control and bird nesting issues
- Enhances chip evacuation for clean machining
- The main industry segment is automotive forged steel parts
- Crankshafts, connecting rods, wheel hubs etc. - CoroTap® 100 -PM also covers ISO P operations in general engineering, energy, pumps and valves, oil and gas
 | Steel |
Optimized and customized tools
CoroTap® 100 for ISO P
The straight flute style tap promotes better chip breaking. Axial coolant facilitates chip removal in blind holes.
CoroTap® 100 for ISO K
The taps with optimized grades for a excellent thread quality and improved wear resistance are designed specifically for cast iron machining.
CoroTap® 100 for ISO N
Tap with optimized substrate and coating for aluminum applications. Refined edge rounding for improved surface finish and optimum flute geometry with excellent chip evacuation.
CoroTap® 100 for ISO H
This range is designed for machining hardened steels (>48HRC)
Customized tools
Not finding the right tap in our standard range? Customized Solutions features Tailor Made and Advanced engineered tools designed for your most unique application requirements.
Tool holding
The CoroChuck™ 970 is designed for stable and precise tapping in all materials. It improves tap tool life and surface quality, and offers the highest process security.
Product range
CoroTap® 100 -PM |
CoroTap™ 100 |
|||||||||
 |
 |
|||||||||
|
|
|
| |||||||
| DIN | DIN/ANSI | JIS | DIN | DIN/ANSI | JIS | DIN | DIN/ANSI | JIS | DIN | |
| M | M6–M16 | M6–M16 | M6–M16 | M3-M24 | M6-M20 | M3-M24 | M3-M16 | M3-M16 | M3-M16 | M3-M12 |
| MF | M6–M16 | M6–M16 | M8-M20 | M10-M14 | M3-M16 | M3-M16 | M3-M16 | |||
| UNC | 1/4–5/8 | 1/4–5/8 | 1/4-7/8 | 1/4-7/8 | ||||||
| UNF | 1/4–5/8 | 1/4–5/8 | 1/4-7/8 | 1/4-7/8 | ||||||
| G | 1/8-1 | |||||||||
