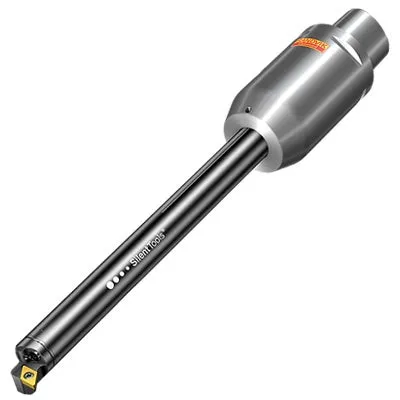

CoroChuck® 935
High-precision hydraulic chuck for turning
Designed for turning operations
A high-precision hydraulic chuck with fast, rigid, and secure clamping, that delivers superior pull-out security.

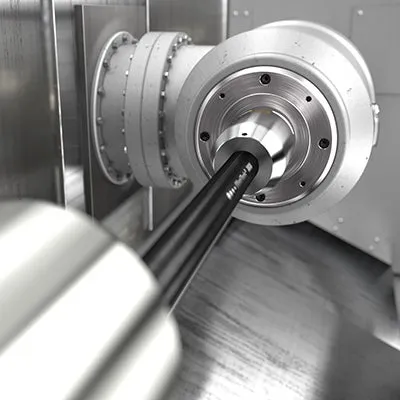

Secure clamping
CoroChuck™ 935 ensures four times the bar diameter clamping length every time.
EasyFix technology
The EasyFix solution secures correct center height for reduced set-up time, excellent cutting action, and improved insert life time.

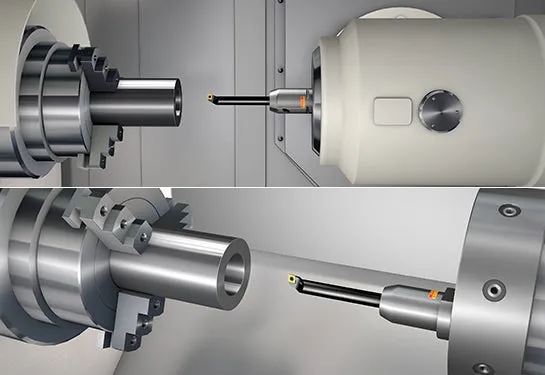

Application
- Hydraulic chuck for turning operations
- Optimized for machining with long overhangs
- Machine tool setup: Turning lathes with turretMulti-task machines with spindle
- Suitable for most common machine interfaces
Product range
Coromant Capto<sup>®</sup>
Metric Coupling size: C4, C5, C6, C8
Bore size: 20, 25
ImperialCoupling size: C6, C8
Bore size: , 1
HSK-A/C/T
Metric Coupling size: 63
Bore size: 20, 25
Cylindrical shank
Metric Coupling size: 40, 50
Bore size: 20, 25
ImperialCoupling size: 2
Bore size: , 1
VDI shank
Metric Coupling size: 40, 50
Bore size: 20, 25
Fulcrum technology
The clamping mechanism used in CoroChuck™ 935 is designed with fulcrum technology: A thin, brazed membrane with an optimized clamping design expands to create two distinct clamping points on each side. This results in a consistently repeated clamping force, providing the best possible pull-out resistance and damping performance.
