  • Drill and Tap Kits

Drill and tap kits

CoroTap® 100 skärande gängtappar med raka spånkanaler
CoroTap-100
CoroTap-100-drill
CoroTap® 200 skärande gängtappar med spiralspets
CoroTap-200
CoroTap-200-drill
CoroTap® 300 gängtappar med spiralspånkanal
CoroTap-300
CoroTap-300-drill
CoroTap® 400 pressgängtappar för höghastighetsbearbetning
CoroTap-400
CoroTap-400-drill

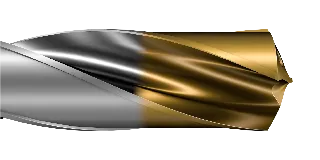

CoroDrill® 860-GM lång livslängd, korthålsborrning i flera material
CoroTap-860 CoroTap-860-p1 CoroTap-860-p2
download-img Ladda ner satssortiment
download-img Ladda ner broschyr om solida hårdmetallverktyg
download-img Så väljer du gängtappstyp
Borr- och gängningssatser: film
download-img
download-img

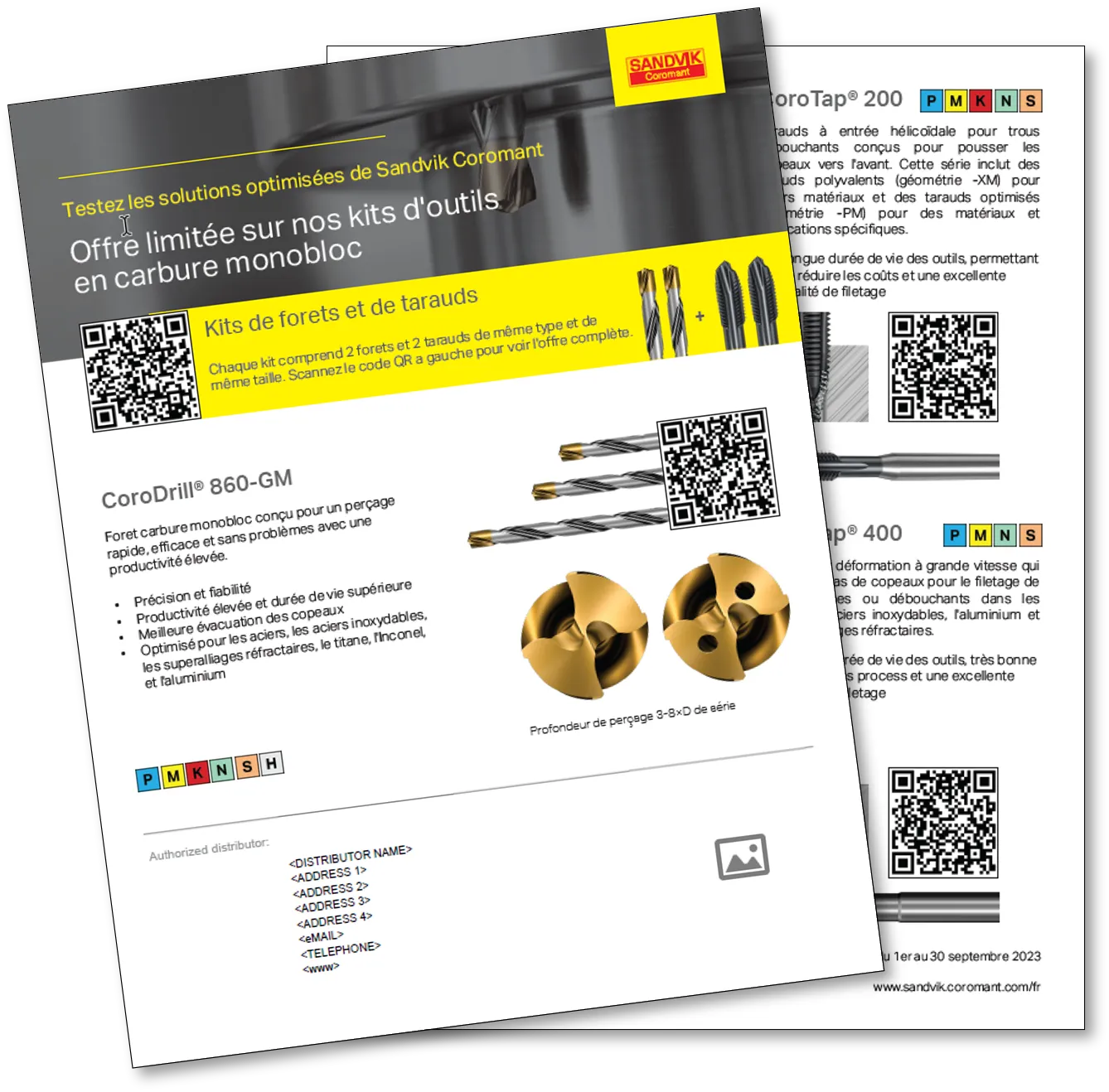

download-img Drilling and tapping kits - flyer

Kit options

M4 M8 M12 UNC
M5 M10 M16 UNF
M6

* Endast Japan

Observera! Satserna visas som " slut på lager", men monteras på beställning från borr och gängtappar i lager. Vänta ytterligare 24 timmars leveranstid när du beställer satser.

Thread type Kit ordering code Kit ordering code xD Coolant yes or no ISO Through/blind Drill code Quantity Tap code Quantity
M4
M4 8522238 M4-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-0330-017A0-GM X1BM 2 T200-XM100DA-M4 C110 2
M4 8522244 M4-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-0330-017A1-GM X1BM 2 T200-XM100DA-M4 C110 2
M4 8522250 M4-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-0330-017A0-GM X1BM 2 T300-XM100DA-M4 C110 2
M4 8522256 M4-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-0330-017A1-GM X1BM 2 T300-XM100DA-M4 C110 2
M4 8384951 M4-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-0330-010A0-GM X1BM 2 T200-PM101DA-M4 P1PM 2
M4 8385027 M4-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-0330-010A1-GM X1BM 2 T200-PM101DA-M4 P1PM 2
M4 8385043 M4-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-0330-010A0-GM X1BM 2 T300-PM100DA-M4 P1PM 2
M4 8385059 M4-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-0330-010A1-GM X1BM 2 T300-PM100DA-M4 P1PM 2
M4 8385076 M4-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-0370-011A1-GM X1BM 2 T400-PM100DA-M4 F125 2
M4 8385132 M4-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-0340-010A0-GM X1BM 2 T100-KM100DA-M4 D210 2
M4 8385138 M4-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-0340-010A1-GMX1BM 2 T100-KM100DA-M4 D210 2
M4 8521979 M4-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-0330-010A0-GM X1BM 2 T200-PM100JA-M4 P1PM 2
M4 8522186 M4-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0330-010A1-GM X1BM 2 T200-PM100JA-M4 P1PM 2
M4 8522193 M4-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0330-010A0-GM X1BM 2 T300-PM100JA-M4 P1PM 2
M4 8522200 M4-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-0330-010A1-GM X1BM 2 T300-PM100JA-M4 P1PM 2
M4 8528893 M4-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-0330-010A0-GM X1BM 2 T100-KM100JA-M5   D115 2
M4 8528920 M4-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-0340-010A1-GM X1BM 2 T100-KM100JA-M4     D115 2
M5
M5 8522239 M5-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-0420-021A0-GM X1BM 2 T200-XM100DA-M5 C110 2
M5 8522245 M5-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-0430-022A1-GM X1BM 2 T200-XM100DA-M5 C110 2
M5 8522251 M5-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-0420-021A0-GM X1BM 2 T300-XM100DA-M5 C110 2
M5 8522257 M5-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-0430-022A1-GM X1BM 2 T300-XM100DA-M5 C110 2
M5 8384952 M5-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-0420-013A0-GM X1BM 2 T200-PM101DA-M5 P1PM 2
M5 8385028 M5-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-0420-013A1-GM X1BM 2 T200-PM101DA-M5 P1PM 2
M5 8385044 M5-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-0420-013A0-GM X1BM 2 T300-PM101DA-M5 P1PM 2
M5 8385060 M5-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-0420-013A1-GM X1BM 2 T300-PM101DA-M5 P1PM 2
M5 8385077 M5-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-0460-014A1-GM X1BM 2 T400-PM100DA-M5 F125 2
M5 8385133 M5-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-0430-013A0-GM X1BM 2 T100-KM100DA-M5 D210 2
M5 8385139 M5-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-0430-013A1-GM X1BM 2 T100-KM100DA-M5 D210 2
M5 8522180 M5-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-0420-013A0-GM X1BM 2 T200-PM100JA-M5 P1PM 2
M5 8522187 M5-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0420-013A1-GM X1BM 2 T200-PM100JA-M5 P1PM 2
M5 8522194 M5-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0420-013A0-GM X1BM 2 T300-PM100JA-M5 P1PM 2
M5 8522201 M5-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-0420-013A1-GM X1BM 2 T300-PM100JA-M5 P1PM 2
M5 8528894 M5-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-0430-013A0-GM X1BM 2 T100-KM100JA-M5 2
M5 8528921 M5-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-0430-013A1-GM X1BM 2 T100-KM100JA-M5     D115 2
M6
M6 8522240 M6-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-0500-025A0-GM X1BM 2 T200-XM100DA-M6 C110 2
M6 8522246 M6-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-0500-025A1-GM X1BM 2 T200-XM100DA-M6 C110 2
M6 8522252 M6-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-0500-025A0-GM X1BM 2 T300-XM100DA-M6 C110 2
M6 8522258 M6-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-0500-025A1-GM X1BM 2 T300-XM100DA-M6 C110 2
M6 8384953 M6-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-0500-015A0-GM X1BM 2 T200-PM101DA-M6 P1PM 2
M6 8385029 M6-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-0500-015A1-GM X1BM 2 T200-PM101DA-M6 P1PM 2
M6 8385045 M6-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-0500-015A0-GM X1BM 2 T300-PM101DA-M6 P1PM 2
M6 8385061 M6-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-0500-015A1-GM X1BM 2 T300-PM101DA-M6 P1PM 2
M6 8385078 M6-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-0550-016A1-GM X1BM 2 T400-PM100DA-M6 F125 2
M6 8385134 M6-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-0510-016A0-GM X1BM 2 T100-KM100DA-M6 D210 2
M6 8385150 M6-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-0510-016A1-GM X1BM 2 T100-KM100DA-M6 D210 2
M6 8522181 M6-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-0500-015A0-GM X1BM 2 T200-PM100JA-M6 P1PM 2
M6 8522188 M6-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0500-015A1-GM X1BM 2 T200-PM100JA-M6 P1PM 2
M6 8522195 M6-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0500-015A0-GM X1BM 2 T300-PM100JA-M6 P1PM 2
M6 8522202 M6-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0500-015A1-GM X1BM 2 T300-PM100JA-M6 P1PM 2
M6 * 8528895 M6-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-0510-016A0-GM X1BM 2 T100-KM100JA-M6     D210 2
M6 * 8528922 M6-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-0510-016A1-GM X1BM 2 T100-KM100JA-M6     D210 2
M8
M8 8522241 M8-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-0680-035A0-GM X1BM 2 T200-XM100DA-M8 C110 2
M8 8522247 M8-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-0680-035A1-GM X1BM 2 T200-XM100DA-M8 C110 2
M8 8522253 M8-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-0680-035A0-GM X1BM 2 T300-XM100DA-M8 C110 2
M8 8522259 M8-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-0680-035A1-GM X1BM 2 T300-XM100DA-M8 C110 2
M8 8384954 M8-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-0680-020A0-GM X1BM 2 T200-PM101DA-M8 P1PM 2
M8 8385030 M8-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-0680-020A1-GM X1BM 2 T200-PM101DA-M8 P1PM 2
M8 8385046 M8-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-0680-020A0-GM X1BM 2 T300-PM101DA-M8 P1PM 2
M8 8385062 M8-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-0680-020A1-GM X1BM 2 T300-PM101DA-M8 P1PM 2
M8 8385079 M8-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-0740-023A1-GM X1BM 2 T400-PM100DA-M8 F125 2
M8 8385135 M8-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-0690-035A0-GM X1BM 2 T100-KM100DA-M8 D210 2
M8 8385151 M8-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-0690-020A1-GM X1BM 2 T100-KM100DA-M8 D210 2
M8 8522182 M8-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0680-020A0-GM X1BM 2 T200-PM101JA-M8 P1PM 2
M8 8522189 M8-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0680-020A1-GM X1BM 2 T200-PM101JA-M8 P1PM 2
M8 8522196 M8-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0680-020A0-GM X1BM 2 T300-PM101JA-M8 P1PM 2
M8 8522203 M8-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-0680-020A1-GM X1BM 2 T300-PM101JA-M8 P1PM 2
M8 * 8528896 M8-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-0680-035A0-GM X1BM 2 T100-KM101JA-M8     D210 2
M8 * 8528923 M8-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-0690-020A1-GM X1BM 2 T100-KM101JA-M8     D210 2
M10
M10 8522242 M10-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-0850-044A0-GM X1BM 2 T200-XM100DA-M10 C110 2
M10 8522248 M10-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-0850-044A1-GM X1BM 2 T200-XM100DA-M10 C110 2
M10 8522254 M10-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-0850-044A0-GM X1BM 2 T300-XM100DA-M10 C110 2
M10 8522260 M10-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-0850-044A1-GM X1BM 2 T300-XM100DA-M10 C110 2
M10 8384955 M10-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-0850-027A0-GM X1BM 2 T200-PM101DA-M10 P1PM 2
M10 8385031 M10-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-0850-027A1-GM X1BM 2 T200-PM101DA-M10 P1PM 2
M10 8385047 M10-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-0850-027A0-GM X1BM 2 T300-PM101DA-M10 P1PM 2
M10 8385063 M10-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-0850-027A1-GM X1BM 2 T300-PM101DA-M10 P1PM 2
M10 8385120 M10-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-0930-029A1-GM X1BM 2 T400-PM100DA-M10 F125 2
M10 8385136 M10-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-0860-027A0-GM X1BM 2 T100-KM100DA-M10 D210 2
M10 8385152 M10-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-0860-027A1-GM X1BM 2 T100-KM100DA-M10 D210 2
M10 8522183 M10-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-0850-027A0-GM X1BM 2 T200-PM101JA-M10 P1PM 2
M10 8522190 M10-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-0850-027A1-GM X1BM 2 T200-PM101JA-M10 P1PM 2
M10 8522197 M10-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-0850-027A0-GM X1BM 2 T300-PM101JA-M10 P1PM 2
M10 8522204 M10-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-0850-027A1-GM X1BM 2 T300-PM101JA-M10 P1PM 2
M10 * 8528897 M10-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-0860-027A0-GM X1BM 2 T100-KM101JA-M10    D210 2
M10 * 8528924 M10-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-0860-027A1-GM X1BM 2 T100-KM101JA-M10    D210 2
M12
M12 8522243 M12-860.1A0GM-T200XM DiN 5xD ✖ ISO PMKNSH ⬤ 860.1-1020-052A0-GM X1BM 2 T200-XM101DA-M12 C110 2
M12 8522249 M12-860.1A1GM-T200XM DiN 5xD ✔ ISO PMKNSH ⬤ 860.1-1020-052A1-GM X1BM 2 T200-XM101DA-M12 C110 2
M12 8522255 M12-860.1A0GM-T300XM DiN 5xD ✖ ISO PMKNSH ⊘ 860.1-1020-052A0-GM X1BM 2 T300-XM101DA-M12 C110 2
M12 8522261 M12-860.1A1GM-T300XM DiN 5xD ✔ ISO PMKNSH ⊘ 860.1-1020-052A1-GM X1BM 2 T300-XM101DA-M12 C110 2
M12 8384956 M12-860.1A0GM-T200PM DiN 3XD ✖ ISO P ⬤ 860.1-1020-032A0-GM X1BM 2 T200-PM101DA-M12 P1PM 2
M12 8385032 M12-860.1A1GM-T200PM DiN 3XD ✔ ISO P ⬤ 860.1-1020-032A1-GM X1BM 2 T200-PM101DA-M12 P1PM 2
M12 8385048 M12-860.1A0GM-T300PM DiN 3XD ✖ ISO P ⊘ 860.1-1020-032A0-GM X1BM 2 T300-PM101DA-M12 P1PM 2
M12 8385064 M12-860.1A1GM-T300PM DiN 3XD ✔ ISO P ⊘ 860.1-1020-032A1-GM X1BM 2 T300-PM101DA-M12 P1PM 2
M12 8385121 M12-860.1A1GM-T400PM DiN 3XD ✔ ISO P
⬤
⊘
 860.1-1120-035A1-GM X1BM 2 T400-PM100DA-M12 F125 2
M12 8385137 M12-860.1A0GM-T100KM DiN 3XD ✖ ISO K
⬤
⊘
 860.1-1030-052A0-GM X1BM 2 T100-KM101DA-M12 D210 2
M12 8385153 M12-860.1A1GM-T100KM DiN 3XD ✔ ISO K
⬤
⊘
 860.1-1030-032A1-GM X1BM 2 T100-KM101DA-M12 D210 2
M12 8522184 M12-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-1020-032A0-GM X1BM 2 T200-PM101JA-M12 P1PM 2
M12 8522191 M12-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-1020-032A1-GM X1BM 2 T200-PM101JA-M12 P1PM 2
M12 8522198 M12-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-1020-032A0-GM X1BM 2 T300-PM101JA-M12 P1PM 2
M12 8522205 M12-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-1020-032A1-GM X1BM 2 T300-PM101JA-M12 P1PM 2
M12 * 8528898 M12-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-1040-052A0-GM X1BM 2 T100-KM101JA-M12    D210 2
M12 * 8528925 M12-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-1030-032A1-GM X1BM 2 T100-KM101JA-M12    D210 2
M16
M16 8522185 M16-860.1A0GM-T200JA PM JIS 3XD ✖ ISO P ⬤ 860.1-1400-055A0-GM X1BM 2 T200-PM101JA-M16 P1PM 2
M16 8522192 M16-860.1A1GM-T200JA PM JIS 3XD ✔ ISO P ⬤ 860.1-1400-055A1-GM X1BM 2 T200-PM101JA-M16 P1PM 2
M16 8522199 M16-860.1A0GM-T300JA PM JIS 3XD ✖ ISO P ⊘ 860.1-1400-055A0-GM X1BM 2 T300-PM101JA-M16 P1PM 2
M16 8522206 M16-860.1A1GM-T300JA PM JIS 3XD ✔ ISO P ⊘ 860.1-1400-055A1-GM X1BM 2 T300-PM101JA-M16 P1PM 2
M16 8528899 M16-860.1A0GM-T100JA KM JIS 3XD ✖ ISO K
⬤
⊘
 860.1-1400-035A0-GM X1BM 2 T100-KM101JA-M16    D115 2
M16 8528926 M16-860.1A1GM-T100JA KM JIS 3XD ✔ ISO K
⬤
⊘
 860.1-1400-055A1-GM X1BM 2 T100-KM101JA-M16    D115 2
Thread type Kit ordering code Kit ordering code xD Coolant yes or no ISO Through/blind Drill code Quantity Tap code Quantity
UNC
1/4-20UNC 8522207 1/4-20-860.1A0GM-T200PM DiN/ANSI 3XD ✖ ISO P ⬤ 860.1-0510-016A0-GM X1BM 2 T200-PM100AE-1/4 P1PM 2
1/4-20UNC 8522212 1/4-20-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ⬤ 860.1-0510-016A1-GM X1BM 2 T200-PM100AE-1/4 P1PM 2
1/4-20UNC 8522218 1/4-20-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0510-016A0-GM X1BM 2 T300-PM100AE-1/4 P1PM 2
1/4-20UNC 8522223 1/4-20-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0510-016A1-GM X1BM 2 T300-PM100AE-1/4 P1PM 2
1/4-20UNC 8522262 1/4-20-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0510-016A0-GM X1BM 2 T100-KM100AE-1/4 D210 2
1/4-20UNC 8522267 1/4-20-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0510-016A1-GM X1BM 2 T100-KM100AE-1/4 D210 2
1/2-13 UNC 8522211 1/2-13-860.1A0GM-T200PM DiN/ANSI 5xD ✖ ISO P ⬤ 860.1-1080-052A0-GM X1BM 2 T200-PM101AE-1/2 P1PM 2
1/2-13 UNC 8550464 1/2-13-860.1A0GM-T200XM DiN/ANSI 5xD ✖ ISO PMKNSH ⬤ 860.1-1080-052A0-GM X1BM 2 T200-XM101AE-1/2 C110 2
1/2-13 UNC 8522216 1/2-13-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ⬤ 860.1-1080-034A1-GM X1BM 2 T200-PM101AE-1/2 P1PM 2
1/2-13 UNC 8550469 1/2-13-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-1080-052A1-GM X1BM 2 T200-XM101AE-1/2 C110 2
1/2-13 UNC 8522222 1/2-13-860.1A0GM-T300PM DiN/ANSI 5XD ✖ ISO P ⊘ 860.1-1080-052A0-GM X1BM 2 T300-PM101AE-1/2 P1PM 2
1/2-13 UNC 8550475 1/2-13-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-1080-052A0-GM X1BM 2 T300-XM101AE-1/2 C110 2
1/2-13 UNC 8522227 1/2-13-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-1080-034A1-GM X1BM 2 T300-PM101AE-1/2 P1PM 2
1/2-13 UNC 8550480 1/2-13-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-1080-052A1-GM X1BM 2 T300-XM101AE-1/2 C110 2
1/4-20 UNC 8550460 860.1-0510-026A0-GM X1BM DiN/ANSI 5XD ✖ ISO PMKNSH ⬤ 860.1-1080-052A1-GM X1BM 2 T200-XM100AE-1/4 C110 2
1/4-20 UNC 8550471 1/4-20-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0510-026A0-GM X1BM 2 T300-XM100AE-1/4 C110 2
1/4-20 UNC 8550465 1/4-20-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-0510-026A1-GM X1BM 2 T200-XM100AE-1/4 C110 2
1/4-20 UNC 8550476 1/4-20-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0510-026A1-GM X1BM 2 T300-XM100AE-1/4 C110 2
1/2-13 UNC 8522266 1/2-13-860.1A0GM-T100KM DiN/ANSI 5XD ✖ ISO K
⬤
⊘
 860.1-1080-052A0-GM X1BM 2 T100-KM101AE-1/2 D210 2
1/2-13 UNC 8522271 1/2-13-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-1080-034A1-GM X1BM 2 T100-KM101AE-1/2 D210 2
3/8-16 UNC 8522209 3/8-16-860.1A0GM-T200PM DiN/ANSI 3XD ✖ ISO P ⬤ 860.1-0800-025A0-GM X1BM 2 T200-PM100AE-3/8 P1PM 2
3/8-16 UNC 8550462 3/8-16-860.1A0GM-T200XM DiN/ANSI 5XD ✖ ISO PMKNSH ⬤ 860.1-0800-038A0-GM X1BM 2 T200-XM100AE-3/8 C110 2
3/8-16 UNC 8522214 3/8-16-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0800-025A1-GM X1BM 2 T200-PM100AE-3/8 P1PM 2
3/8-16 UNC 8550467 3/8-16-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-0800-038A1-GM X1BM 2 T200-XM100AE-3/8 C110 2
3/8-16 UNC 8522220 3/8-16-860.1A0GM-T300PM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0800-025A0-GM X1BM 2 T300-PM100AE-3/8 P1PM 2
3/8-16 UNC 8550473 3/8-16-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0800-038A0-GM X1BM 2 T300-XM100AE-3/8 C110 2
3/8-16 UNC 8522225 3/8-16-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0800-025A1-GM X1BM 2 T300-PM100AE-3/8 P1PM 2
3/8-16 UNC 8550478 3/8-16-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0800-038A1-GM X1BM 2 T300-XM100AE-3/8 C110 2
5/16-1 UNC 8550461 5/16-18-860.1A0GM-T200XM DiN/ANSI 3XD ✖ ISO PMKNSH ⬤ 860.1-0660-020A0-GM X1BM 2 T200-XM100AE-5/16 C110 2
5/16-1 UNC 8550472 5/16-18-860.1A0GM-T300XM DiN/ANSI 3XD ✖ ISO PMKNSH ⊘ 860.1-0660-020A0-GM X1BM 2 T300-XM100AE-5/16 C110 2
5/16-1 UNC 8550466 5/16-18-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-0660-034A1-GM X1BM 2 T200-XM100AE-5/16 C110 2
5/16-1 UNC 8550477 5/16-18-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0660-034A1-GM X1BM 2 T300-XM100AE-5/16 C110 2
3/8-16 UNC 8522264 3/8-16-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0800-025A0-GM X1BM 2 T100-KM100AE-3/8 D210 2
3/8-16 UNC 8522269 3/8-16-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0800-025A1-GM X1BM 2 T100-KM100AE-3/8 D210 2
5/8-11 UNC 8522217 5/8-11-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ⬤ 860.1-1350-038A1-GM X1BM 2 T200-PM101AE-5/8 P1PM 2
5/8-11 UNC 8550470 5/8-11-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-1350-055A1-GM X1BM 2 T200-XM101AE-5/8 C110 2
5/8-11 UNC 8522228 5/8-11-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-1350-038A1-GM X1BM 2 T300-PM101AE-5/8 P1PM 2
7/16-1 UNC 8550481 5/8-11-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0950-044A0-GM X1BM 2 T300-XM101AE-7/16 C110 2
7/16-1 UNC 8550463 7/16-14-860.1A0GM-T200XM DiN/ANSI 5XD ✖ ISO PMKNSH ⬤ 860.1-1350-055A1-GM X1BM 2 T300-XM101AE-5/8 C110 2
7/16-1 UNC 8550474 7/16-14-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0950-044A0-GM X1BM 2 T300-XM101AE-7/16 C110 2
7/16-1 UNC 8550468 7/16-14-860.1A1GM-T200XM DiN/ANSI 5XD ✔ ISO PMKNSH ⬤ 860.1-0950-044A0-GM X1BM 2 T300-XM101AE-7/16 C110 2
7/16-1 UNC 8550479 7/16-14-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0950-044A1-GM X1BM 2 T300-XM101AE-7/16 C110 2
5/8-11 UNC 8522272 5/8-11-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-1350-038A1-GM X1BM 2 T100-KM101AE-5/8 D210 2
5/16-18 UNC 8522208 5/16-18-860.1A0GM-T200PM DiN/ANSI 3XD ✖ ISO P ⬤ 860.1-0660-020A0-GM X1BM 2 T200-PM100AE-5/16 P1PM 2
5/16-18 UNC 8522213 5/16-18-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ⬤ 860.1-0660-020A1-GM X1BM 2 T200-PM100AE-5/16 P1PM 2
5/16-18 UNC 8522219 5/16-18-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0660-020A0-GM X1BM 2 T300-PM100AE-5/16 P1PM 2
5/16-18 UNC 8522224 5/16-18-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0660-020A1-GM X1BM 2 T300-PM100AE-5/16 P1PM 2
5/16-18 UNC 8522263 5/16-18-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0660-020A0-GM X1BM 2 T100-KM100AE-5/16 D210 2
5/16-18 UNC 8522268 5/16-18-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0660-020A1-GM X1BM 2 T100-KM100AE-5/16 D210 2
7/16-14 UNC 8522210 7/16-14-860.1A0GM-T200PM DiN/ANSI 3XD ✖ ISO P ✔ 860.1-0950-030A0-GM X1BM 2 T200-PM101AE-7/16 P1PM 2
7/16-14 UNC 8522215 7/16-14-860.1A1GM-T200PM DiN/ANSI 3XD ✔ ISO P ✔ 860.1-0950-030A1-GM X1BM 2 T200-PM101AE-7/16 P1PM 2
7/16-14 UNC 8522221 7/16-14-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0950-030A0-GM X1BM 2 T300-PM101AE-7/16 P1PM 2
7/16-14 UNC 8522226 7/16-14-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0950-030A1-GM X1BM 2 T300-PM101AE-7/16 P1PM 2
7/16-14 UNC 8522265 7/16-14-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0950-030A0-GM X1BM 2 T100-KM101AE-7/16 D210 2
7/16-14 UNC 8522270 7/16-14-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0950-030A1-GM X1BM 2 T100-KM101AE-7/16 D210 2
UNF
1/2-20 UNF 8522237 1/2-20-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-1150-035A1-GM X1BM 2 T300-PM101AF-1/2 P1PM 2
1/2-20 UNF 8550490 1/2-20-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-1150-051A1-GM X1BM 2 T300-XM101AF-1/2 C110 2
1/4-28 UNF 8550482 1/4-28-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0550-028A0-GM X1BM 2 T300-XM100AF-1/4 C110 2
1/4-28 UNF 8550486 1/4-28-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0550-028A1-GM X1BM 2 T300-XM100AF-1/4 C110 2
1/2-20 UNF 8522281 1/2-20-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-1150-035A1-GM X1BM 2 T100-KM101AF-1/2 D210 2
1/4-28UNF 8522229 1/4-28-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0550-016A0-GM X1BM 2 T300-PM100AF-1/4 P1PM 2
1/4-28UNF 8522233 1/4-28-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0550-016A1-GM X1BM 2 T300-PM100AF-1/4 P1PM 2
1/4-28UNF 8522273 1/4-28-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0550-016A0-GM X1BM 2 T100-KM100AF-1/4 D210 2
1/4-28UNF 8522277 1/4-28-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0550-016A1-GM X1BM 2 T100-KM100AF-1/4 D210 2
3/8-24 UNF 8522231 3/8-24-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0850-027A0-GM X1BM 2 T300-PM100AF-3/8 P1PM 2
3/8-24 UNF 8550484 3/8-24-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0850-044A0-GM X1BM 2 T300-XM100AF-3/8 C110 2
3/8-24 UNF 8522235 3/8-24-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0850-027A1-GM X1BM 2 T300-PM100AF-3/8 P1PM 2
3/8-24 UNF 8550488 3/8-24-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0850-044A1-GM X1BM 2 T300-XM100AF-3/8 C110 2
5/16-2 UNF 8550483 5/16-24-860.1A0GM-T300XM DiN/ANSI 5XD ✖ ISO PMKNSH ⊘ 860.1-0690-035A0-GM X1BM 2 T300-XM100AF-5/16 C110 2
5/16-2 UNF 8550487 5/16-24-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0690-035A1-GM X1BM 2 T300-XM100AF-5/16 C110 2
3/8-24 UNF 8522275 3/8-24-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0850-027A0-GM X1BM 2 T100-KM100AF-3/8 D210 2
3/8-24 UNF 8522279 3/8-24-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0850-027A1-GM X1BM 2 T100-KM100AF-3/8 D210 2
5/16-24 UNF 8522230 5/16-24-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0690-035A0-GM X1BM 2 T300-PM100AF-5/16 P1PM 2
5/16-24 UNF 8522234 5/16-24-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0690-020A1-GM X1BM 2 T300-PM100AF-5/16 P1PM 2
7/16-2 UNF 8550485 7/16-20-860.1A0GM-T300XM DiN/ANSI 3XD ✖ ISO PMKNSH ⊘ 860.1-0980-030A0-GM X1BM 2 T300-XM101AF-7/16 C110 2
7/16-2 UNF 8550489 7/16-20-860.1A1GM-T300XM DiN/ANSI 5XD ✔ ISO PMKNSH ⊘ 860.1-0980-044A1-GM X1BM 2 T300-XM101AF-7/16 C110 2
5/16-24 UNF 8522274 5/16-24-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0690-035A0-GM X1BM 2 T100-KM100AF-5/16 D210 2
5/16-24 UNF 8522278 5/16-24-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0690-020A1-GM X1BM 2 T100-KM100AF-5/16 D210 2
7/16-20 UNF 8522232 7/16-20-860.1A0GM-T300PM DiN/ANSI 3XD ✖ ISO P ⊘ 860.1-0980-030A0-GM X1BM 2 T300-PM101AF-7/16 P1PM 2
7/16-20 UNF 8522236 7/16-20-860.1A1GM-T300PM DiN/ANSI 3XD ✔ ISO P ⊘ 860.1-0980-030A1-GM X1BM 2 T300-PM101AF-7/16 P1PM 2
7/16-20 UNF 8522276 7/16-20-860.1A0GM-T100KM DiN/ANSI 3XD ✖ ISO K
⬤
⊘
 860.1-0980-030A0-GM X1BM 2 T100-KM101AF-7/16 D210 2
7/16-20 UNF 8522280 7/16-20-860.1A1GM-T100KM DiN/ANSI 3XD ✔ ISO K
⬤
⊘
 860.1-0980-030A1-GM X1BM 2 T100-KM101AF-7/16 D210 2


account_circle
Skapa konto chevron_right

Beställ, se priser och kontrollera verktygstillgänglighet

mail
Prenumerera på vårt nyhetsbrev chevron_right

Följ oss. Håll dig uppdaterad.

account_circle

Välkommen,

Vi beklagar, men företagsregistrering eller anslutning är för närvarande inte tillgänglig i ditt land. Vi ber om ursäkt för eventuella olägenheter.
Produkter
keyboard_arrow_down
Inställningar
keyboard_arrow_down
Logga ut
