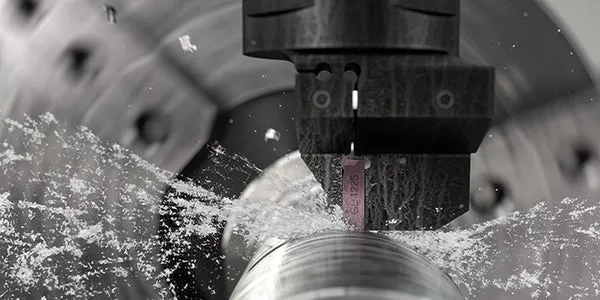

CoroCut® 1-2

Versatile parting and grooving

Versatile parting and grooving

With more than 700 standard inserts, CoroCut® 1-2 covers all parting and grooving applications in most materials, from standardized grooves to parting off and profiling in heat-resistant super alloys.

Cost-efficiency with two edges

The two-edge inserts are firmly positioned in the railed insert seat, providing cost-efficiency and stable performance.

Secure and efficient machining

In grooving, chips easily get stuck in the curved groove, leading to insert breakage. CoroCut® 1-2 tools with precision coolant securely evacuate the chips for an uninterrupted machining process.

View More Features

  • Rail insert seat (down to 4 mm insert width) ensures stable and precise insert position
  • Profiling inserts for high-precision profiling operations
  • Wiper design for excellent surface finish
  • Neutral, right- and left-hand style inserts with geometries dedicated for parting off
  • Inserts for hard part turning at high feed rates
  • Blanks for do-it-yourself grinding
  • Grooving inserts in many widths and with many corner radii
  • Tailor Made inserts and tools

Application

  • Parting, external grooving, face grooving, internal grooving, profiling and hard part turning
  • Roughing to finishing

In parting off and external grooving, CoroCut® 1-2 is a cost-efficient solution for depths in which 2-edged inserts can be used.

  • Steel
  • Stainless steel
  • Cast iron
  • Non-ferrous materials
  • Heat resistant super alloys
  • Hardened steel

Product variants

Tool holding

  • Coromant Capto®, VDI and HSK-T for connecting QS shanks and parting blades in turning centers
  • QS™ stops for connecting QS shanks and Swiss tools, machine-specific adapters
  • Rectangular shanks and boring bars

Plug and play adapters for easy coolant connection

CoroTurn® SL blades

CoroTurn® SL cutting blades enable a wide range of tool combinations from a small inventory of adapters and cutting heads.

Insert geometries

  • Parting off: -CF, -CM, -CR, -CS
  • Grooving and side turning: -TF, -TM
  • Grooving: -GF, -GM, -GR
  • Profiling: -RO, -RM, -RE
  • Wiper: -CF, -TF
  • Hard part turning: -XB

Insert grades

  • PVD: GC1105, GC1125, GC1145
  • CVD: GC1135, GC4325, S205, CG3115
  • CBN: CB7015, CB7025, CB7105 and CB7115
  • PCD: CD10
  • Ceramic: CC6220
  • Uncoated: H13A, H10F

Tailor Made

Tailor Made option available
